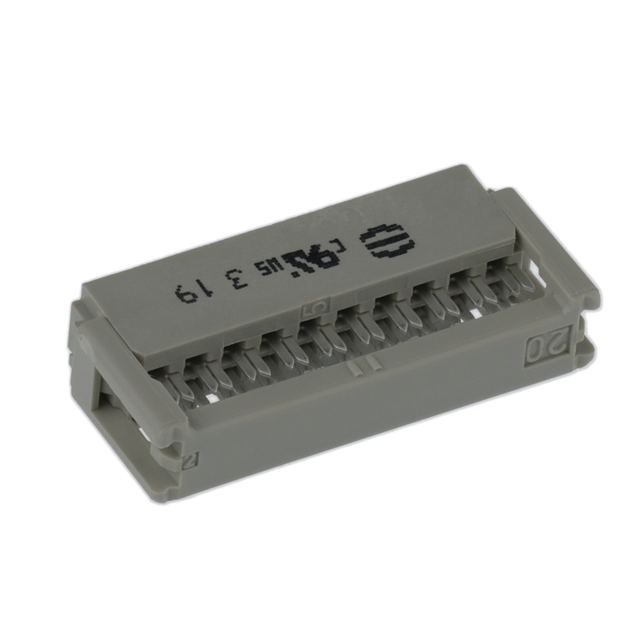

Specification	09185207804

Cable Termination	IDC
Connector Type	Receptacle
Contact Finish	Gold
Contact Type	Female Socket
Features	Closed End, Polarizing Key
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch	0.1 in
Row Spacing	0.1 in
Wire Gauge (AWG) (Max)	28 AWG
Wire Gauge (AWG) (Min)	26 AWG
Wire Type	Ribbon Cable

SEK Series

Part	Contact Finish - Mating	Number of Positions Loaded	Insulation Color	Overall Contact Length	Row Spacing - Mating	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Termination	Insulation Material	Fastening Type	Contact Length - Post	Contact Type	Features	Contact Shape	Contact Finish - Post	Connector Type	Contact Material	Insulation Height	Style	Contact Length - Mating	Number of Positions	Mounting Type	Number of Rows	Pitch - Mating	Contact Finish Thickness - Mating
HARTING 09185267902	Gold	All	Gray	0.713 in	0.1 in	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Glass Filled Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Long	0.177 in	Male Pin	Keying Slot Mounting Flange	Square	Tin	Header	Copper Alloy	0.681 in	Board Cable/Wire	0.24 in	26	Through Hole	2	0.1 in
HARTING 09185205901	Gold	All	Gray		0.1 in	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Glass Filled Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Long	0.177 in	Male Pin	Keying Slot Mounting Flange	Square	Tin	Header	Copper Alloy	0.335 in	Board Cable/Wire	0.24 in	20	Right Angle Through Hole	2	0.1 in	30 µin
HARTING 09185245924	Gold	All	Gray	0.65 in	0.1 in	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Glass Filled Polybutylene Terephthalate (PBT)	Push-Pull	0.114 in	Male Pin	Keying Slot Mounting Flange	Square	Tin	Header	Copper Alloy	0.681 in	Board Cable/Wire	0.24 in	24 pos	Through Hole	2	0.1 in	30 µin
HARTING 09185267914800		All	Gray		0.1 in	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Glass Filled Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Short		Male Pin	Keying Slot Mounting Flange	Square		Header	Copper Alloy	0.681 in	Board Cable/Wire	0.228 in	26	Through Hole	2	0.1 in
HARTING 09185267912	Gold	All	Gray	0.713 in	0.1 in	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Glass Filled Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Short	0.177 in	Male Pin	Keying Slot Mounting Flange	Square	Tin	Header	Copper Alloy	0.681 in	Board Cable/Wire	0.228 in	26	Through Hole	2	0.1 in
HARTING 09185266922	Gold	All	Gray	0.713 in	0.1 in	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Glass Filled Polybutylene Terephthalate (PBT)	Push-Pull	0.177 in	Male Pin	Keying Slot Mounting Flange	Square	Tin	Header	Copper Alloy	0.681 in	Board Cable/Wire	0.24 in	26	Through Hole	2	0.1 in
HARTING 09185266324	Gold	All	Gray		0.1 in	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Glass Filled Polybutylene Terephthalate (PBT)	Latch Holder	0.114 in	Male Pin	Keying Slot	Square	Tin	Header	Copper Alloy	0.35 in	Board Cable/Wire	0.24 in	26	Through Hole	2	0.1 in
HARTING 09185205911	Gold	All	Gray		0.1 in	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Glass Filled Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Short	0.177 in	Male Pin	Keying Slot Mounting Flange	Square	Tin	Header	Copper Alloy	0.335 in	Board Cable/Wire	0.24 in	20	Right Angle Through Hole	2	0.1 in	30 µin
HARTING 09185265922	Gold	All	Gray	0.713 in	0.1 in	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Glass Filled Polybutylene Terephthalate (PBT)	Push-Pull	0.177 in	Male Pin	Keying Slot Mounting Flange	Square	Tin	Header	Copper Alloy	0.681 in	Board Cable/Wire	0.24 in	26	Through Hole	2	0.1 in	30 µin
HARTING 09185206329	Gold	All	Gray		0.1 in	UL94 V-0			Shrouded - 4 Wall	Press-Fit Solder	Glass Filled Polybutylene Terephthalate (PBT)	Push-Pull	0.217 in	Male Pin	Keying Slot	Square	Tin	Header	Copper Alloy	0.35 in	Board Cable/Wire	0.24 in	20	Through Hole	2	0.1 in
