CJR6X88TGBU
ObsoletePanduit Corp

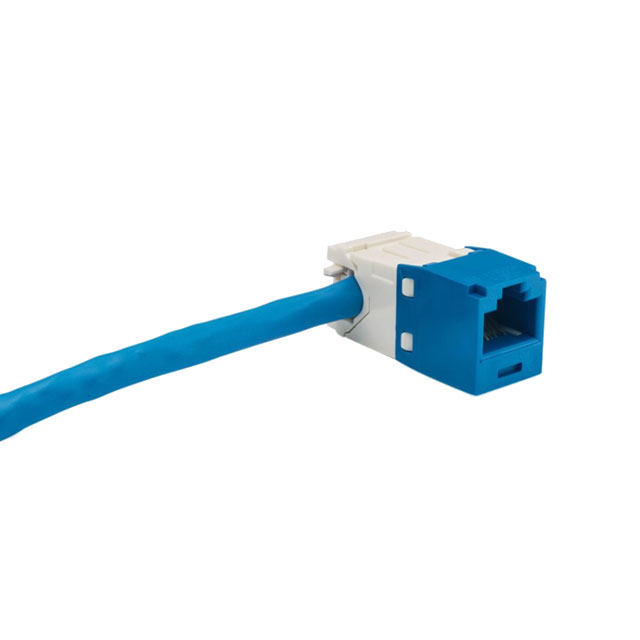

MINI-COM MODULE, CAT 6A, UTP, 8
CJR6X88TGBU
ObsoletePanduit Corp
MINI-COM MODULE, CAT 6A, UTP, 8
Description
General part information
CJR6X88TGBU
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat6a
Technical Specifications
Parameters and characteristics for this part
| Specification | CJR6X88TGBU |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Material | Phosphor Bronze |
| Housing Material | PC, Polycarbonate |
| LED Color | Does Not Contain LED |
| Mounting Type | Panel Mount |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -10 °C |
| Orientation | Straight |
| Ratings | Cat6a |
| Shielding | Unshielded |
| Tab Direction | Up |
| Termination | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
