MS3108E24-10P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E24-10P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108E24-10P | MS3108E24 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Cable Opening [custom] | 0.781 in | 0.781 in |
| Cable Opening [custom] | 19.84 mm | 19.84 mm |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 46 A | 13 - 46 A |
| Features | Coupling Nut, Cable Clamp | Coupling Nut, Cable Clamp |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 7 | 7 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-DTL-5015, MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | - | 24-2, 24-7 |
| Shell Size - Insert [Max] | 10 | 10 |
| Shell Size - Insert [Min] | 24 | 24 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 900 - 1250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 80.99 | |
| 10 | $ 74.32 | |||
| 25 | $ 71.46 | |||
| 50 | $ 69.08 | |||
| 100 | $ 65.27 | |||
MS3108E24 Series
MIL-5015 MS/AC THREADED PLUG
| Part | Ingress Protection | Shell Finish | Cable Opening [custom] | Cable Opening [custom] | Contact Finish - Mating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Qualification | Connector Type | Features | Orientation | Shell Material | Applications | Shielding | Contact Material | Grade | Shell Size - Insert | Current Rating (Amps) | Color | Number of Positions | Primary Material | Insert Material | Mounting Type | Number of Positions | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108E24-2P | Environment Resistant | Olive Drab Chromate over Cadmium | 0.781 in | 19.84 mm | Silver | 900 VAC, 1250 VDC | -55 °C | 125 °C | MIL-DTL-5015 | Male Pins, Plug | Cable Clamp, Coupling Nut | N | Aluminum Alloy | Marine, Military | Unshielded | Copper Alloy | Military | 24-2 | 23 A | Olive Drab | 7 | Metal | Neoprene | Free Hanging (In-Line), Right Angle | |||
Amphenol Industrial Operations MS3108E24-28P | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E24-7S | Environment Resistant | Olive Drab Chromate over Cadmium | 0.781 in | 19.84 mm | Silver | -55 °C | 125 °C | MIL-DTL-5015 | Female Sockets, Plug | Cable Clamp, Coupling Nut | N | Aluminum Alloy | Marine, Military | Unshielded | Copper Alloy | Military | 24-7 | 13 A, 23 A | Olive Drab | Metal | Neoprene | Free Hanging (In-Line), Right Angle | 16 | ||||
Amphenol Industrial Operations MS3108E24-2PZ | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E24-10P | Environment Resistant | Olive Drab Chromate over Cadmium | 0.781 in | 19.84 mm | Silver | -55 °C | 125 °C | MIL-DTL-5015 | Male Pins, Plug | Cable Clamp, Coupling Nut | N | Aluminum Alloy | Marine, Military | Unshielded | Copper Alloy | Military | 46 A | Olive Drab | 7 | Metal | Neoprene | Free Hanging (In-Line), Right Angle | 24 | 10 | |||
Amphenol Industrial Operations MS3108E24-2PW | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E24-3S | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E24-12P | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E24-27P | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E24-27S |
Description
General part information
MS3108E24 Series

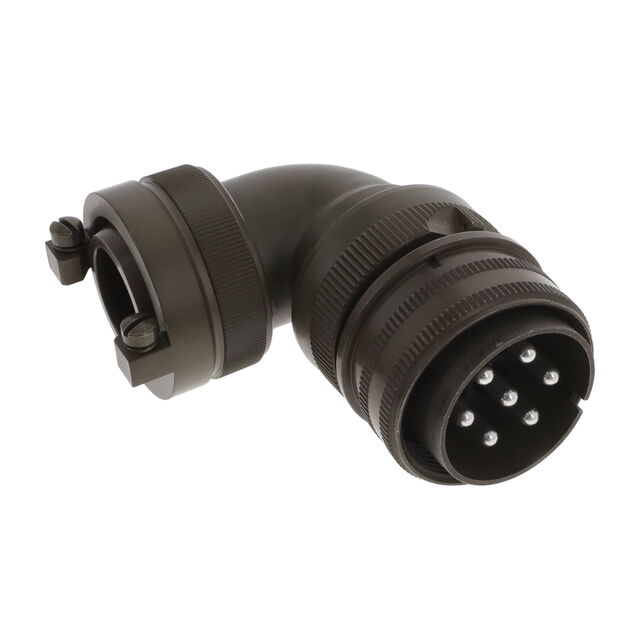

7 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
