MGDT100100LF

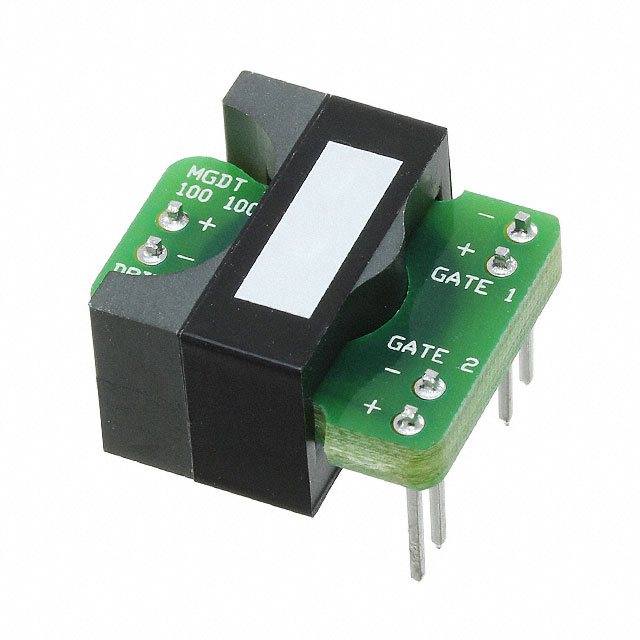

240µH Gate Drive Pulse Transformer 1:1:1 Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDT100100LF |
|---|---|
| Height - Seated (Max) | 0.45 in |
| Inductance | 240 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Size / Dimension Length | 0.81 in |
| Size / Dimension Width | 0.725 in |
| Transformer Type | Gate Drive |
| Turns Ratio - Primary:Secondary | 1:1:1 |
