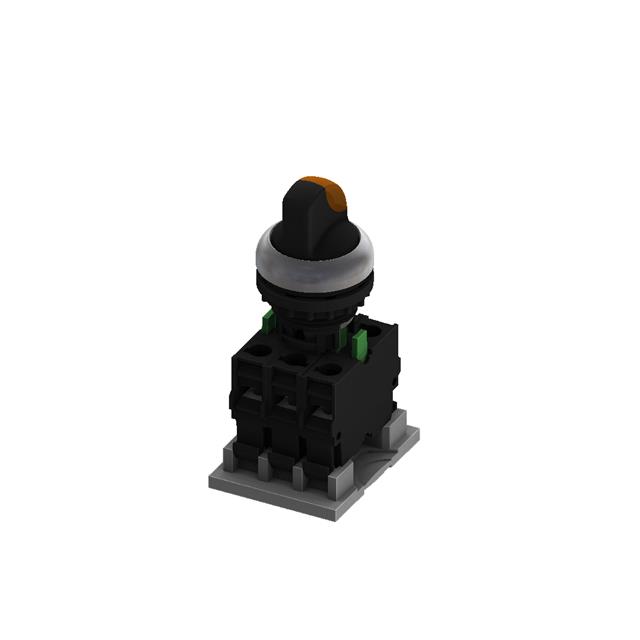

M22S-T20SB20-E30-Y
Selector Switch 2 Position DPST 6A (AC), 3A (DC) 230 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | M22S-T20SB20-E30-Y |
|---|---|
| Circuit | DPST |
| Color | Yellow |
| Current Rating | 6 A, 3 A |
| Illumination | Illuminated |
| Illumination Type | LED |
| Illumination Voltage (Nominal) (Maximum) | 30 VAC/DC |
| Illumination Voltage (Nominal) (Minimum) | 12 VAC/DC |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 230 V |
| Voltage Rating - DC | 24 V |
