ASP0460522
ActiveMETZ CONNECT USA Inc.
SPRING CLAMP TERMINAL BLOCK, PLU
Deep-Dive with AI
Search across all available documentation for this part.
ASP0460522
ActiveMETZ CONNECT USA Inc.
SPRING CLAMP TERMINAL BLOCK, PLU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP0460522 |
|---|---|
| Color | Black |
| Current - UL | 10 A |
| Features | Lever Actuated, Retention Latches (Non-Wire Side) |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.61 in |
| Insulation Height | 15.49 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 5 |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Type | Plug, Female Sockets |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
| Wire Gauge or Range - mm² [Max] | 1 mm² |
| Wire Gauge or Range - mm² [Min] | 0.08 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5000 | $ 1.76 | |
Description
General part information
ASP0460522

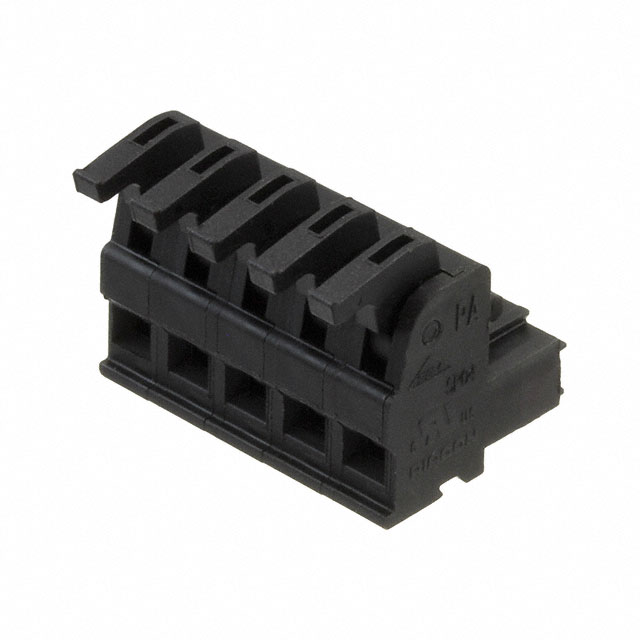

5 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Documents
Technical documentation and resources
No documents available
