53-491239

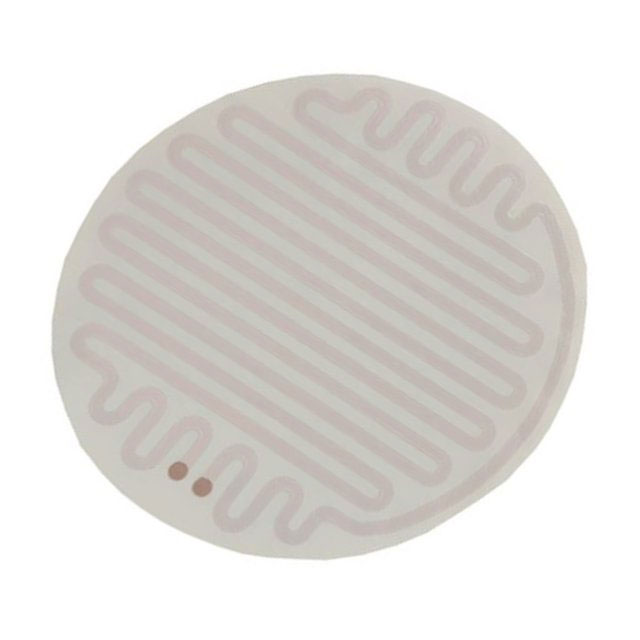

ActiveTurboFlex Heaters
FLEX HEATER POLYESTER 12" WIRE
53-491239
ActiveTurboFlex Heaters
FLEX HEATER POLYESTER 12" WIRE
Description
General part information
53-491239
FLEX HEATER POLYESTER 12" WIRE
Technical Specifications
Parameters and characteristics for this part
| Specification | 53-491239 |
|---|---|
| Approval Agency | UL |
| Attachment Method | Pressure Sensitive Adhesive (PSA) |
| Color | Off-White |
| Diameter | 17 in |
| Features | User Selectable Voltage, Leads Potted |
| Length - Lead Wire | 12 in |
| Material | Polyester |
| Material - Insulation | PTFE, Polytetrafluoroethylene |
| Power (Watts) | 2269.8 W |
| Resistance | 0.06 Ohms |
| Shape | Circular |
| Temperature Rating | 250 °F |
| Termination | Wire Leads |
| Type | Flexible Heater, Foil |
| Voltage | 12 VDC |
| Watt Density | 10 W/in² |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
