US2BA

Active

ON Semiconductor

SUPER FAST SURFACE MOUNT RECTIFIERS/ REEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ON Semiconductor

SUPER FAST SURFACE MOUNT RECTIFIERS/ REEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	US2BA

Capacitance @ Vr, F	50 pF
Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	5 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

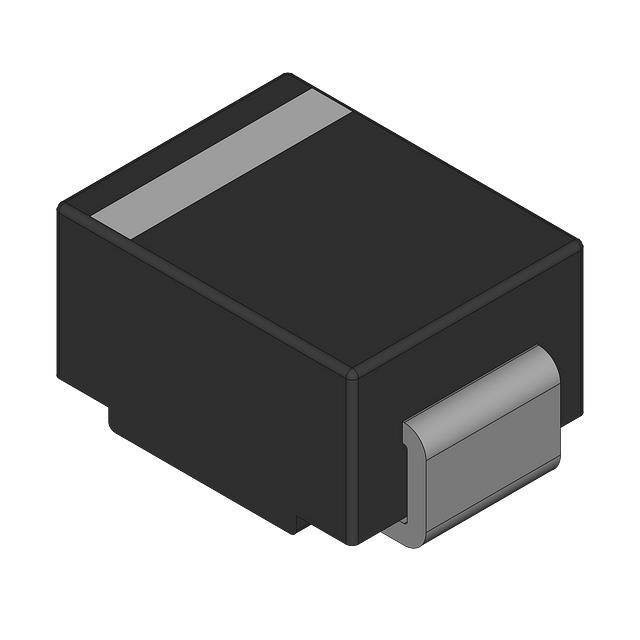

Package / Case	DO-214AC, SMA
Qualification	AEC-Q101
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AC (SMA)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1 V

Super Fast Surface Mount Rectifiers

Part	Technology	Capacitance @ Vr, F	Grade	Reverse Recovery Time (trr)	Supplier Device Package	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Package / Case	Voltage - Forward (Vf) (Max) @ If	Qualification	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Current - Reverse Leakage @ Vr
ON Semiconductor US2BA	Standard	50 pF	Automotive	50 ns	DO-214AC (SMA)	Surface Mount	150 °C	-55 °C	1.5 A	DO-214AC, SMA	1 V	AEC-Q101	100 V	200 mA, 500 ns	5 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1782	$ 0.17
Newark	Each	2500	$ 0.14
		10000	$ 0.13
		25000	$ 0.13
ON Semiconductor	N/A	1	$ 0.13

General part information

Super Fast Surface Mount Rectifiers
