General part information

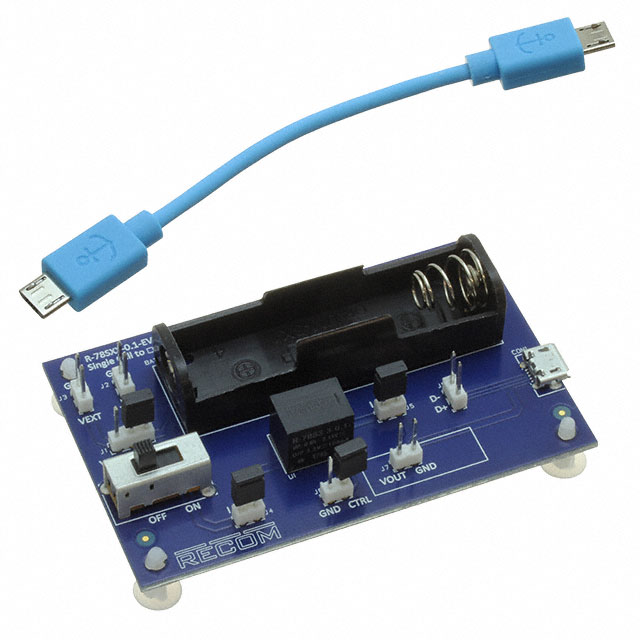

Power Management IC Development Tools R-78S3.3-0.1 Eval Module
Technical documentation and resources
Parameters and characteristics for this part
| Specification | R-78S3.3-0.1-EVM-1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 100 mA |
| Frequency - Switching | 1.2 MHz |
| Main Purpose | DC/DC, Step Up |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Boost |
| Supplied Contents | Board(s) |
| Utilized IC / Part | R-78S |
| Voltage - Input [Max] | 3.15 V |
| Voltage - Input [Min] | 0.65 V |
| Voltage - Output | 3.3 V |
Power Management IC Development Tools R-78S3.3-0.1 Eval Module
| Part | Board Type | Current - Output | Utilized IC / Part | Supplied Contents | Frequency - Switching | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] | Outputs and Type | Outputs and Type | Main Purpose | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power R-78S3.3-0.1-EVM-1 | Fully Populated | 100 mA | R-78S | Board(s) | 1.2 MHz | Boost | 3.15 V | 0.65 V | Non-Isolated | 1 | DC/DC, Step Up | 3.3 V |
