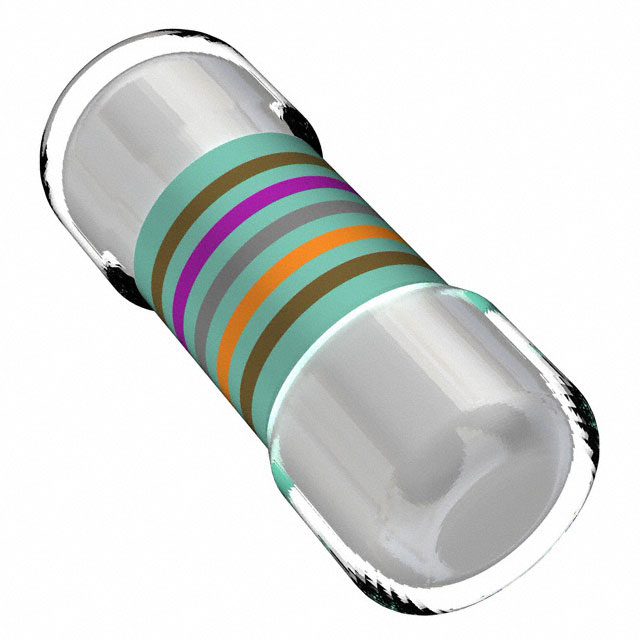

MLF14FTE178K
ActiveStackpole Electronics Inc
RES THIN FILM 0204(1406) 178K OHM 1% 0.25W(1/4W) ±25PPM/°C SULFUR RESISTANT MELF PAD SMD T/R
MLF14FTE178K
ActiveStackpole Electronics Inc
RES THIN FILM 0204(1406) 178K OHM 1% 0.25W(1/4W) ±25PPM/°C SULFUR RESISTANT MELF PAD SMD T/R
Description
General part information
MLF14FTE178K
178 kOhms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MLF14FTE178K |
|---|---|
| Composition | Thin Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0204, MELF |
| Package Name | 0204 |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 178 kOhm |
| Size / Dimension Diameter | 0.055 in |
| Size / Dimension Length | 0.138 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
