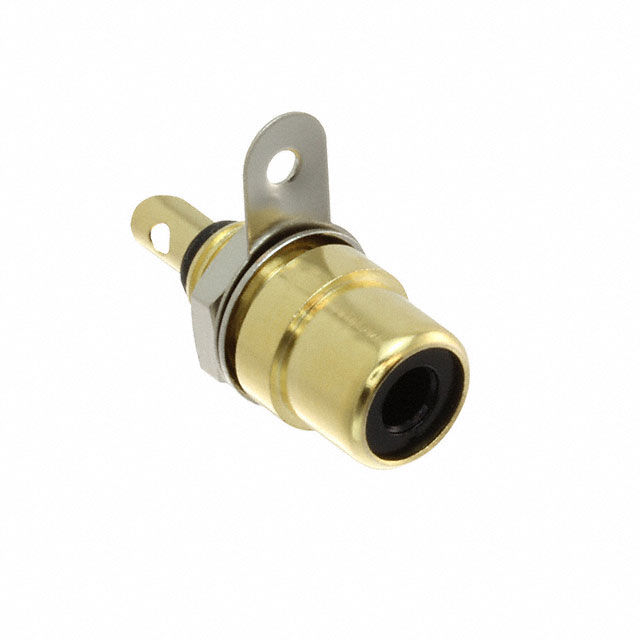

BPJF01AUX
ActiveSwitchcraft Inc.
CONN RCA JACK MONO 3.2MM PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPJF01AUX
ActiveSwitchcraft Inc.
CONN RCA JACK MONO 3.2MM PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BPJF01AUX | BPJF01 Series |
|---|---|---|
| Actual Diameter [custom] | 8.25 mm | 8.25 mm |
| Actual Diameter [custom] | 0.134 " | 0.134 " |
| Actual Diameter [custom] | 3.4 mm | 3.4 mm |
| Actual Diameter [custom] | 0.325 " | 0.325 " |
| Body Color | Silver | Silver |
| Body Material | Brass | Brass |
| Connector Type | Phono (RCA) Jack | Phono (RCA) Jack |
| Contact Material | Brass | Brass |
| Contact Material - Plating | - | Nickel |
| Contact Material - Plating [custom] | Gold | Gold |
| Features | Mounting Hardware, Grounding Tab | Mounting Hardware, Grounding Tab |
| Gender | Female | Female |
| Includes | Connector, Washer, Nut | Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm | 3.2 - 9 mm |
| Insulation Color | Black | Black |
| Internal Switch(s) | False | False |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Panel Hole Size | 10.2 mm | 10.2 mm |
| Panel Hole Size | 0.402 in | 0.402 in |
| Shielding | Unshielded | Unshielded |
| Signal Lines | Mono | Mono |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
| Thread Size | 1/4"-32 | 1/4"-32 |
BPJF01 Series
CONN RCA JACK MONO 3.2MM PNL MT
| Part | Body Material | Termination | Industry Recognized Mating Diameter [diameter] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Gender | Connector Type | Shielding | Internal Switch(s) | Contact Material - Plating [custom] | Contact Material | Insulation Color | Body Color | Thread Size | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Features | Panel Hole Size | Panel Hole Size | Includes | Signal Lines | Contact Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. BPJF01X | Brass | Solder Eyelet(s) | 3.2 mm, 9 mm | 8.25 mm | 0.134 " | 3.4 mm | 0.325 " | Female | Phono (RCA) Jack | Unshielded | Nickel | Brass | Black | Silver | 1/4"-32 | 2 | 2 | Grounding Tab, Mounting Hardware | 10.2 mm | 0.402 in | Connector, Nut, Washer | Mono | ||
Switchcraft Inc. BPJF01AUX | Brass | Solder Eyelet(s) | 3.2 mm, 9 mm | 8.25 mm | 0.134 " | 3.4 mm | 0.325 " | Female | Phono (RCA) Jack | Unshielded | Brass | Black | Silver | 1/4"-32 | 2 | 2 | Grounding Tab, Mounting Hardware | 10.2 mm | 0.402 in | Connector, Nut, Washer | Mono | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.21 | |
| 10 | $ 2.91 | |||
| 25 | $ 2.76 | |||
| 50 | $ 2.69 | |||
| 100 | $ 2.56 | |||
| 300 | $ 2.24 | |||
| 500 | $ 2.18 | |||
| 1000 | $ 1.98 | |||
Description
General part information
BPJF01 Series
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
