A6MMS-6436G
ActiveTE Connectivity AMP Connectors
IDC CABLE - ADM64S/AE64G/ADM64S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A6MMS-6436G
ActiveTE Connectivity AMP Connectors
IDC CABLE - ADM64S/AE64G/ADM64S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A6MMS-6436G | A6MMS Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | DIP to DIP | DIP to DIP |
| Contact Finish | Tin | Tin |
| Contact Finish Thickness | 2.54 µm | 2.54 µm |
| Contact Finish Thickness | 100 µin | 100 µin |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 3 ft | 1.5 - 3 ft |
| Length [x] | 914.4 mm | 457.2 - 914.4 mm |
| Number of Positions | 64 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
| Usage | Board In, Socket (0.1") | Board In, Socket (0.1") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.68 | |
| 10 | $ 17.13 | |||
| 25 | $ 15.90 | |||
| 50 | $ 15.03 | |||
| 100 | $ 14.21 | |||
| 250 | $ 13.20 | |||
| 500 | $ 12.48 | |||
A6MMS Series
IDC CABLE - ADM60S/AE60M/ADM60S
| Part | Usage | Color | Contact Finish | Length | Length | Length | Number of Positions | Shielding | Pitch - Connector | Pitch - Connector | Connector Type | Number of Rows | Pitch - Cable | Pitch - Cable | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A6MMS-6006M | Board In, Socket (0.1") | Multiple, Ribbon | Tin | 152.4 mm | 6 " | 0.5 ' | 60 | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | |||
TE Connectivity AMP Connectors A6MMS-1636G | Board In, Socket (0.1") | Tin | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | 16 | 3 ft | 914.4 mm | |||||
TE Connectivity AMP Connectors A6MMS-2418G | Board In, Socket (0.1") | Tin | 24 | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | 1.5 ft | 457.2 mm | |||||
TE Connectivity AMP Connectors A6MMS-2018M | Board In, Socket (0.1") | Multiple, Ribbon | Tin | 20 | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | 1.5 ft | 457.2 mm | ||||
TE Connectivity AMP Connectors A6MMS-6018M | Board In, Socket (0.1") | Multiple, Ribbon | Tin | 60 | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | 1.5 ft | 457.2 mm | ||||
TE Connectivity AMP Connectors A6MMS-6436M | Board In, Socket (0.1") | Multiple, Ribbon | Tin | 64 | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | 3 ft | 914.4 mm | ||||
TE Connectivity AMP Connectors A6MMS-2406M | Board In, Socket (0.1") | Multiple, Ribbon | Tin | 152.4 mm | 6 " | 0.5 ' | 24 | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | |||
TE Connectivity AMP Connectors A6MMS-4036G | Board In, Socket (0.1") | Tin | 40 | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | 3 ft | 914.4 mm | |||||
TE Connectivity AMP Connectors A6MMS-4036M | Board In, Socket (0.1") | Multiple, Ribbon | Tin | 40 | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | 3 ft | 914.4 mm | ||||
TE Connectivity AMP Connectors A6MMS-6436G | Board In, Socket (0.1") | Tin | 64 | Unshielded | 0.1 in | 2.54 mm | DIP to DIP | 2 | 0.05 " | 1.27 mm | IDC | 2.54 µm | 100 µin | 3 ft | 914.4 mm |
Description
General part information
A6MMS Series

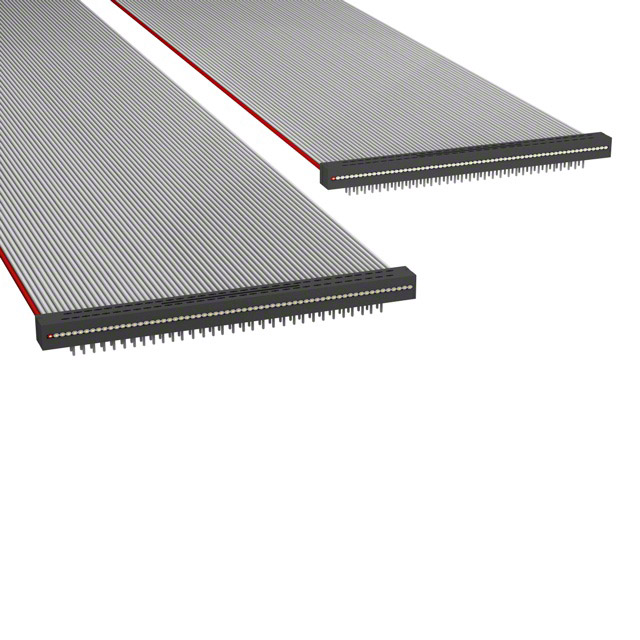

64 Position Cable Assembly Rectangular DIP to DIP 3.00' (914.40mm)
