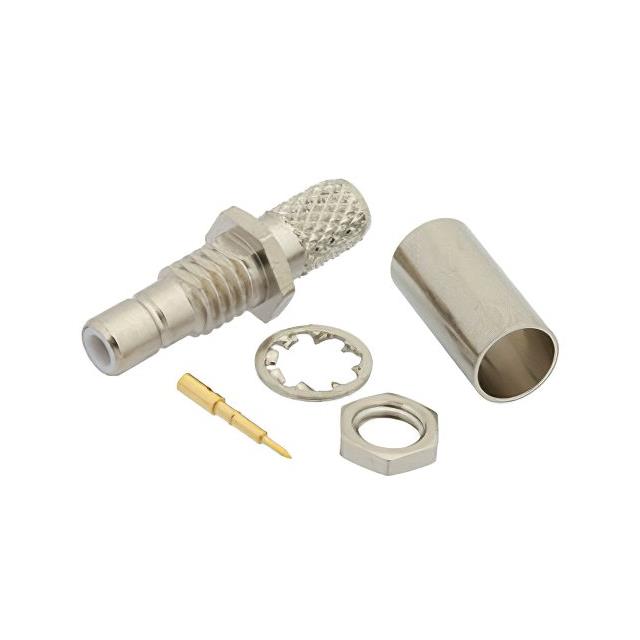

Specification	PE44094

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Jack, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Silver
Impedance	50 Ohm
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Shield Termination	Crimp
