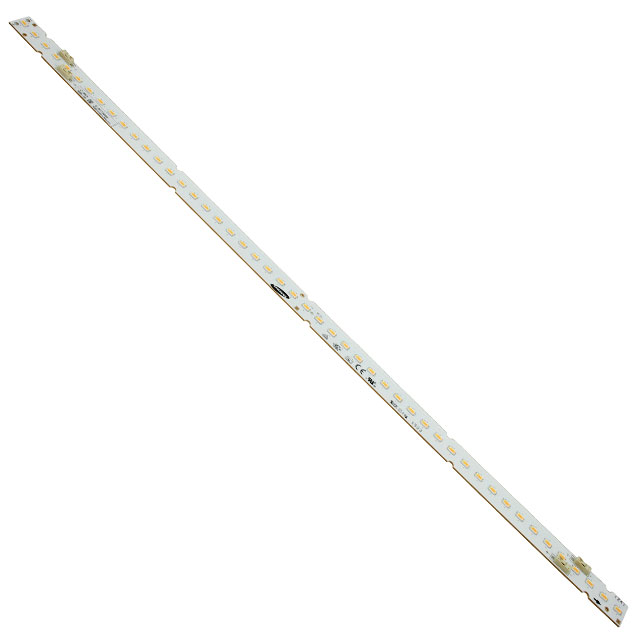

Specification	SI-B9W171560WW

CCT (K)	2700 K
CCT Description	3-Step MacAdam Ellipse
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	90
Current - Max	900 mA
Current - Test	700 mA
Height	5.8 mm
Lens Type	Flat
Lumens/Watt	99 lm/W
Luminous Flux (Typical)	1660 lm
Size / Dimension Length	560 mm
Size / Dimension Width	18 mm
Temperature - Test	50 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	24 VDC

SI-B9 Series

Part	Luminous Flux (Typical)	Configuration	CRI (Color Rendering Index)	Viewing Angle	Color	CCT (K)	Current - Test	Temperature - Test	Lens Type	Type	Lumens/Watt	Size / Dimension Length	Size / Dimension Width	Voltage - Forward (Vf) (Typ)	Height	Current - Max	CCT Description
Samsung Semiconductor, Inc. SI-B9V041500WW	650 lm	Linear Light Strip	90	160 °	Warm White	3000 K	110 mA	40 °C	Flat	LED Module	145 lm/W	500 mm	13 mm	40.8 V	7 mm	300 mA
Samsung Semiconductor, Inc. SI-B9T113280WW	1163 lm	Linear Light Strip	90	115 °	Neutral White	4000 K	450 mA	55 °C	Flat	LED Module	103 lm/W	275 mm	18 mm	25 V	5.8 mm	450 mA	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SI-B9V081B00WW	1300 lm	Linear Light Strip	90	160 °	Warm White	3000 K	220 mA	40 °C	Flat	LED Module	145 lm/W	1100 mm	13 mm	40.8 V	7 mm	600 mA
Samsung Semiconductor, Inc. SI-B9W111560WW	1020 lm	Linear Light Strip	90	115 °	Warm White	2700 K	450 mA	50 °C	Flat	LED Module	92 lm/W	560 mm	18 mm	24.7 V	5.8 mm	450 mA	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SI-B9U111560WW	1120 lm	Linear Light Strip	90	115 °	Warm White	3500 K	450 mA	50 °C	Flat	LED Module	101 lm/W	560 mm	18 mm	24.7 V	5.8 mm	450 mA	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SI-B9R081B00WW	1400 lm	Linear Light Strip	90	160 °	Cool White	5000 K	220 mA	40 °C	Flat	LED Module	156 lm/W	1100 mm	13 mm	40.8 V	7 mm	600 mA
Samsung Semiconductor, Inc. SI-B9U081B00WW	1340 lm	Linear Light Strip	90	160 °	Warm White	3500 K	220 mA	40 °C	Flat	LED Module	149 lm/W	1100 mm	13 mm	40.8 V	7 mm	600 mA
Samsung Semiconductor, Inc. SI-B9T051280WW	585 lm	Linear Light Strip	90	115 °	Neutral White	4000 K	450 mA	55 °C	Flat	LED Module	108 lm/W	275 mm	18 mm	12 VAC	5.8 mm	450 mA	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SI-B9U041500WW	670 lm	Linear Light Strip	90	160 °	Warm White	3500 K	110 mA	40 °C	Flat	LED Module	149 lm/W	500 mm	13 mm	40.8 V	7 mm	300 mA
Samsung Semiconductor, Inc. SI-B9T041500WW	700 lm	Linear Light Strip	90	160 °	Neutral White	4000 K	110 mA	40 °C	Flat	LED Module	156 lm/W	500 mm	13 mm	40.8 V	7 mm	300 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SI-B9W171560WW | Datasheet
