YK4211003000G

Active

AMPHENOL ANYTEK

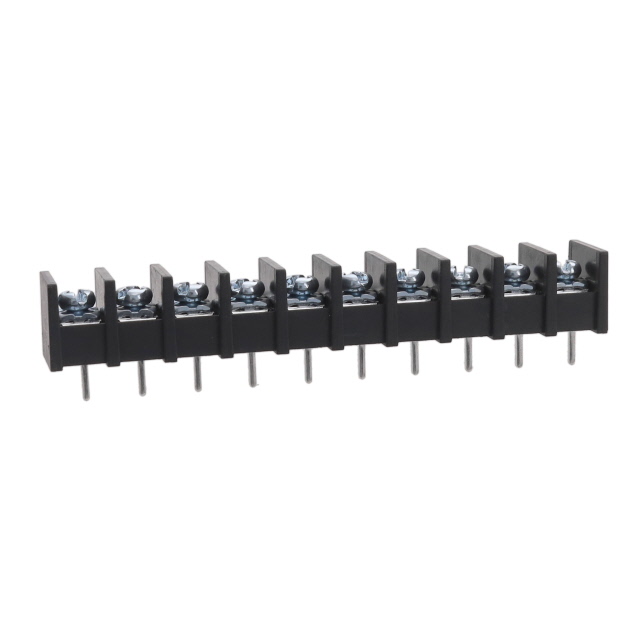

PCB MOUNT BARRIER TERMINAL BLOCK, 8.25 MM, 1 ROW, 10 POSITIONS, 22 AWG, 12 AWG, 20 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

YK4211003000G

Active

AMPHENOL ANYTEK

PCB MOUNT BARRIER TERMINAL BLOCK, 8.25 MM, 1 ROW, 10 POSITIONS, 22 AWG, 12 AWG, 20 A

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YK4211003000G	YK421 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Circuits	10	2 - 19
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	10	2 - 19
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	8.26 mm	8.26 mm
Pitch [x]	0.325 in	0.325 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

YK421 Series

CONN BARRIER STRP 17CIRC 0.325"

Part	Top Termination	Bottom Termination	Material - Insulation	Material Flammability Rating	Terminal Screw Material	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Terminal Block Type	Color	Pitch [x]	Pitch [x]	Number of Rows	Barrier Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Wire Entries	Terminal Screw Finish	Mounting Type	Current Rating (Amps)	Voltage Rating	Number of Circuits [custom]
AMPHENOL ANYTEK YK4211703000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG	17	Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	17	Zinc	Through Hole	20 A	300 VDC
AMPHENOL ANYTEK YK4211403000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG	14	Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	14	Zinc	Through Hole	20 A	300 VDC
AMPHENOL ANYTEK YK4210803000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG		Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	8	Zinc	Through Hole	20 A	300 VDC	8
AMPHENOL ANYTEK YK4210303000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG	3	Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	3	Zinc	Through Hole	20 A	300 VDC
AMPHENOL ANYTEK YK4210703000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG	7	Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	7	Zinc	Through Hole	20 A	300 VDC
AMPHENOL ANYTEK YK4210203000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG	2	Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	2	Zinc	Through Hole	20 A	300 VDC
AMPHENOL ANYTEK YK4211503000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG	15	Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	15	Zinc	Through Hole	20 A	300 VDC
AMPHENOL ANYTEK YK4211803000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG	18	Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	18	Zinc	Through Hole	20 A	300 VDC
AMPHENOL ANYTEK YK4211903000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG	19	Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	19	Zinc	Through Hole	20 A	300 VDC
AMPHENOL ANYTEK YK4210403000G	Screws with Captive Plate	PC Pin	Thermoplastic	UL94 V-0	Steel	12 AWG	22 AWG	4	Barrier Block	Black	8.26 mm	0.325 in	1	2 Wall (Dual)	-40 °C	115 °C	4	Zinc	Through Hole	20 A	300 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.90
		10	$ 1.44
		25	$ 1.33
		50	$ 1.20
		100	$ 1.17
		250	$ 1.03

Description

General part information

YK421 Series

10 Circuit 0.325" (8.26mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

Drawing EN

Datasheet
