1318382-2
ActiveTE Connectivity AMP Connectors

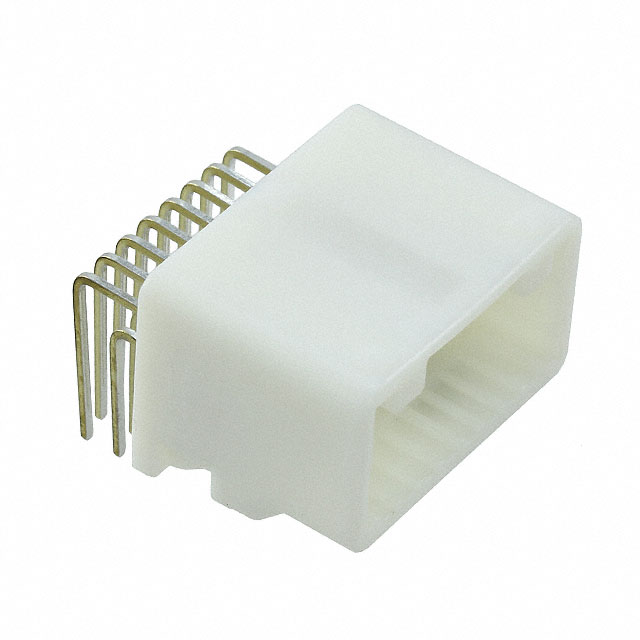

CONN HEADER R/A 16POS 2.2MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1318382-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 16POS 2.2MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1318382-2 | 1318382 Series |
|---|---|---|
| - | - | |
| Applications | Automotive | Automotive |
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Mating | 0.217 in | 0.217 in |
| Contact Length - Mating | 5.5 mm | 5.5 mm |
| Contact Length - Post | 0.157 in | 0.157 in |
| Contact Length - Post | 4 mm | 4 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Mounting Flange | Mounting Flange |
| Insulation Color | Natural | Natural, Black |
| Insulation Height | 0.61 in | 0.61 in |
| Insulation Height | 15.49 mm | 15.49 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 16 | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch - Mating | 0.087 in | 0.087 in |
| Pitch - Mating | 2.2 mm | 2.2 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 12 V | 12 V |
1318382 Series
CONNECTOR ASSY
| Part | Contact Type | Contact Length - Mating | Contact Length - Mating | Mounting Type | Style | Pitch - Mating | Pitch - Mating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Features | Insulation Color | Contact Finish - Post | Number of Rows | Connector Type | Applications | Number of Positions | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Shrouding | Termination | Insulation Height | Insulation Height | Material Flammability Rating | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1318382-3 | |||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 1318382-8 | Male Pin | 0.217 in | 5.5 mm | Through Hole, Right Angle | Board to Cable/Wire | 0.087 in | 2.2 mm | Latch Holder | -30 ░C | 105 ░C | Brass | All | 0.157 in | 4 mm | Mounting Flange | Natural | Tin | 2 | Header | Automotive | 16 | Square | 3 mm | 0.118 in | 12 V | Shrouded - 4 Wall | Solder | 0.61 in | 15.49 mm | ||
TE Connectivity AMP Connectors 1-1318382-0 | Male Pin | 0.217 in | 5.5 mm | Through Hole, Right Angle | Board to Cable/Wire | 0.087 in | 2.2 mm | Latch Holder | -30 ░C | 105 ░C | Brass | All | 0.157 in | 4 mm | Mounting Flange | Black | Tin | 2 | Header | Automotive | 16 | Square | 3 mm | 0.118 in | 12 V | Shrouded - 4 Wall | Solder | 0.61 in | 15.49 mm | UL94 HB | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 1318382-2 | Male Pin | 0.217 in | 5.5 mm | Through Hole, Right Angle | Board to Cable/Wire | 0.087 in | 2.2 mm | Latch Holder | -30 ░C | 105 ░C | Brass | All | 0.157 in | 4 mm | Mounting Flange | Natural | Tin | 2 | Header | Automotive | 16 | Square | 3 mm | 0.118 in | 12 V | Shrouded - 4 Wall | Solder | 0.61 in | 15.49 mm | UL94 HB | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 1318382-1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.38 | |
| 19 | $ 1.26 | |||
| 38 | $ 1.22 | |||
| 57 | $ 1.21 | |||
| 114 | $ 1.12 | |||
| 266 | $ 1.10 | |||
| 513 | $ 1.09 | |||
Description
General part information
1318382 Series
Connector Header Through Hole, Right Angle 16 position 0.087" (2.20mm)
