1ED3122MU12HXUMA1

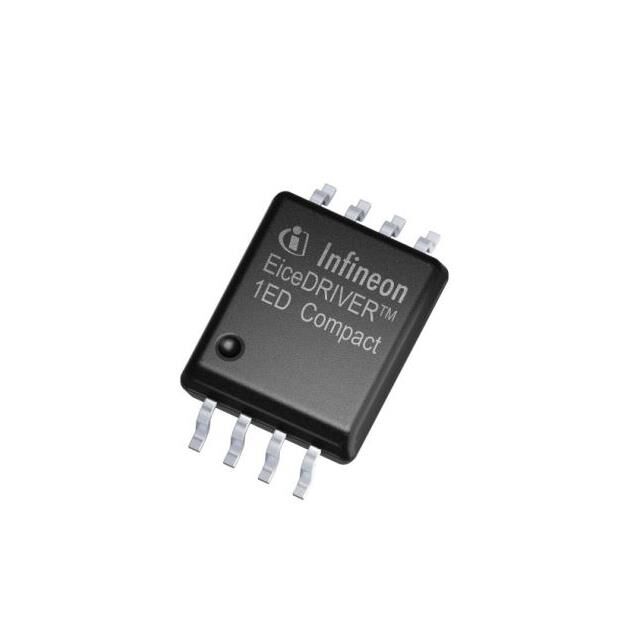

ActiveTHE 1ED3122MU12H IS A 1200 V, 10A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
1ED3122MU12HXUMA1
ActiveTHE 1ED3122MU12H IS A 1200 V, 10A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER
Deep-Dive with AI
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.84 | |
| 10 | $ 2.12 | |||
| 25 | $ 1.94 | |||
| 100 | $ 1.75 | |||
| 250 | $ 1.65 | |||
| 500 | $ 1.60 | |||
| Digi-Reel® | 1 | $ 2.84 | ||
| 10 | $ 2.12 | |||
| 25 | $ 1.94 | |||
| 100 | $ 1.75 | |||
| 250 | $ 1.65 | |||
| 500 | $ 1.60 | |||
| Tape & Reel (TR) | 1000 | $ 1.55 | ||
| 2000 | $ 1.51 | |||
| 3000 | $ 1.49 | |||
| 5000 | $ 1.47 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.59 | |
| 10 | $ 1.90 | |||
| 25 | $ 1.85 | |||
| 50 | $ 1.79 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.62 | |||
| 1000 | $ 1.41 | |||
Description
General part information
1ED3122 Series
EiceDRIVER™ Compactsingle-channelisolated gate driverwith 10 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creepage distance (>8 mm) forIGBTs,MOSFETsandSiC MOSFETs. 1ED3122MU12H belongs to the EiceDRIVER™ Compact 1ED31xx family (X3 compact family). 1ED3122 offers active Miller clamp, accurate and stable timing, active shutdown to ensure a safe IGBT off-state in case the output chip is not connected to the power, short-circuit clamping to limit the gate voltage during short circuit. The driver can operate over a wide supply voltage range, either unipolar or bipolar.
