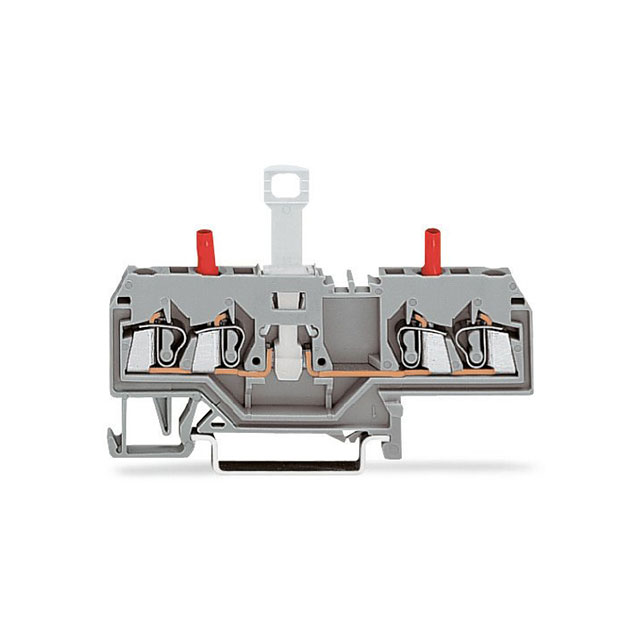

280-649
ActiveWAGO Corporation
4-CONDUCTOR DISCONNECT/TEST TERMINAL BLOCK
280-649
ActiveWAGO Corporation
4-CONDUCTOR DISCONNECT/TEST TERMINAL BLOCK
Description
General part information
280-649
Terminal Block Connector 4 Position Disconnect Gray 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 280-649 |
|---|---|
| Color | Gray |
| Current - IEC | 10 A |
| Disconnect Type | Switch, Knife |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Stripping Length (Max) | 9 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 5 mm |
| Termination Style | Push In, Spring |
| Type | Disconnect |
| Voltage - IEC | 400 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
