Description
General part information

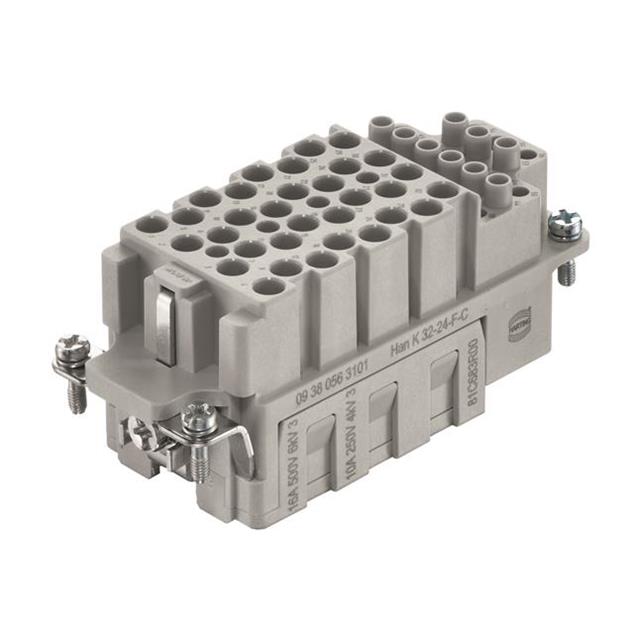

09380563101
Female Insert without Contacts Gray 24+32+Ground Position Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 09380563101 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Han® E, Han® D |
| Current Rating Options | 10A, 16A |
| Gender | Female |
| Housing Material | PC, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 32, 24, Ground |
| Number of Positions | 24 pos |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | 32, Ground |
| Size | 16B |
| Termination Style | Crimp |
| Voltage Rating | 500 V, 250 V |
