9721 060100

Active

Belden Inc.

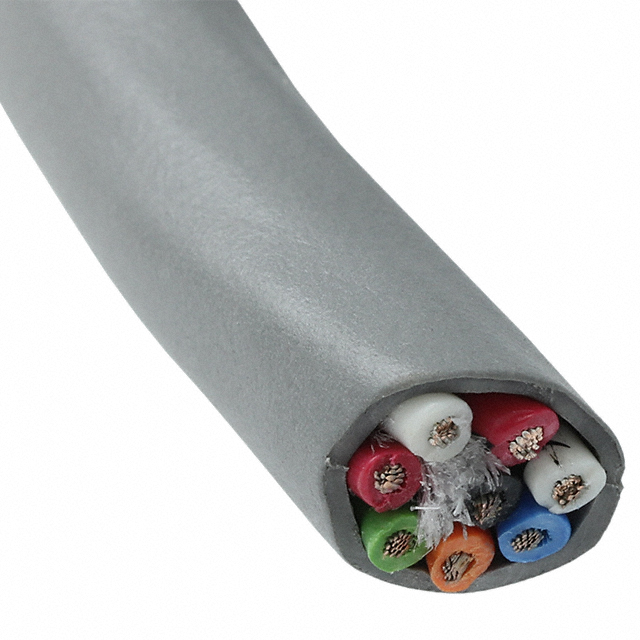

CABLE 8COND 16AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 8COND 16AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9721 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	0.49 "
Jacket (Insulation) Diameter [diameter]	12.45 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Wire Gauge	16 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Number of Conductors	Conductor Material	Jacket (Insulation) Material	Usage	Jacket Color	Cable Type
Belden Inc. 9721 060500	-20 C	80 C	16 AWG	Poly-Vinyl Chloride (PVC)	19 Strands	29 AWG	1.143 mm	0.045 in	0.49 "	12.45 mm	500 '	152.4 m	8	Copper Tinned	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	Chrome	Multi-Conductor
Belden Inc. 9721 060100	-20 C	80 C	16 AWG	Poly-Vinyl Chloride (PVC)	19 Strands	29 AWG	1.143 mm	0.045 in	0.49 "	12.45 mm	100 ft	30.5 m	8	Copper Tinned	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	Chrome	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Chrome 16 AWG 100.0' (30.5m)
