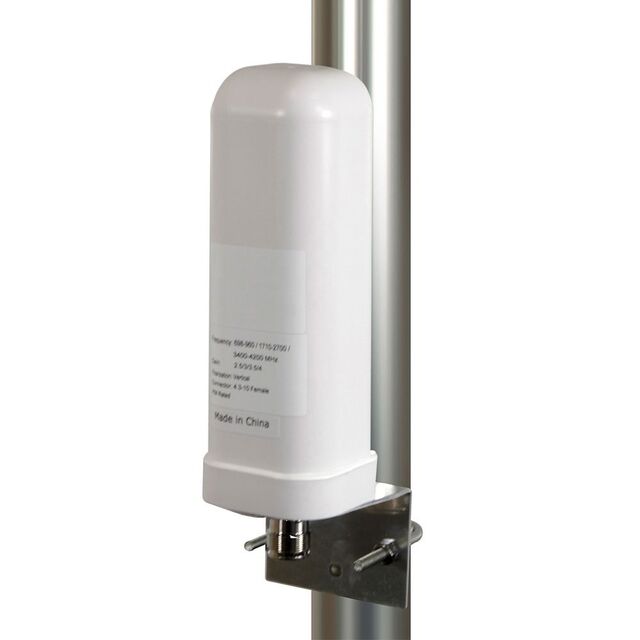

Specification	FM51OM1032

Antenna Type	Dome
Applications	LoRa, CDMA, LTE-M, GSM, 5G, IoT, M2M, LPWAN, NB-IoT, LTE
Features	Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm
Frequency (Center/Band)	883MHz, 3.8GHz, 752MHz, 2.205GHz
Frequency (Center/Band) - 1	752 MHz
Frequency (Center/Band) - 2	883 MHz
Frequency (Center/Band) - 3	2.205 GHz
Frequency (Center/Band) - 4	3.8 GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	806 MHz
Frequency Range (Band 1) Minimum	698 MHz
Frequency Range (Band 2) Maximum	960 MHz
Frequency Range (Band 2) Minimum	806 MHz
Frequency Range (Band 3) Maximum	2.7 GHz
Frequency Range (Band 3) Minimum	1.71 GHz
Frequency Range (Band 4) Maximum	4.2 GHz
Frequency Range (Band 4) Minimum	3.4 GHz
Gain	3 dBi, 4 dBi, 3.5 dBi
Height (Max)	7.4 in
Mounting Type	Bracket Mount
Number of Bands	4
Power - Max	50 VA
RF Family/Standard	Cellular
Termination Gender	Female
Termination Pin Count	10 pins
Termination Pitch	4.3 mm
VSWR	1.4
