Description
General part information

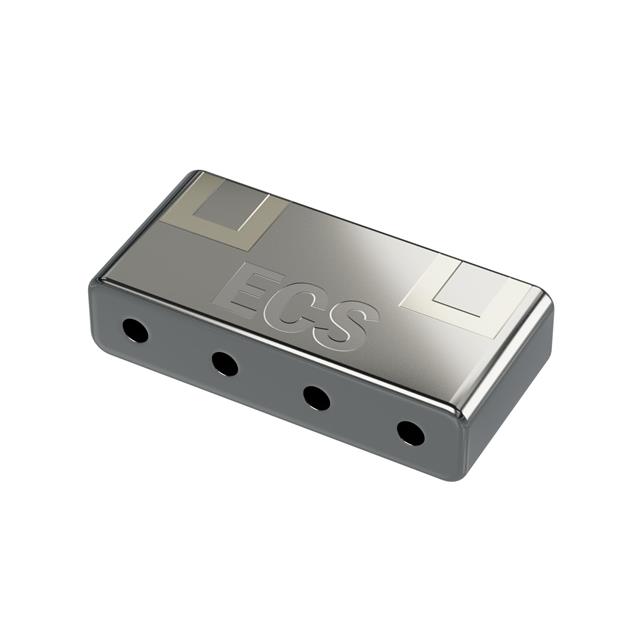

ECS-DCF-109
5.4425GHz Center Ceramic Filter 585 MHz Monoblock, 3 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-DCF-109 |
|---|---|
| Bandwidth | 585 MHz |
| Frequency (Center) | 5.4425 GHz |
| Height (Max) | 0.118 in |
| Insertion Loss | 2.2 dB |
| Mounting Type | Surface Mount |
| Package Name | Monoblock |
| Pad Count | 3 PC Pad |
| Size / Dimension Length | 0.378 in |
| Size / Dimension Width | 0.201 in |
