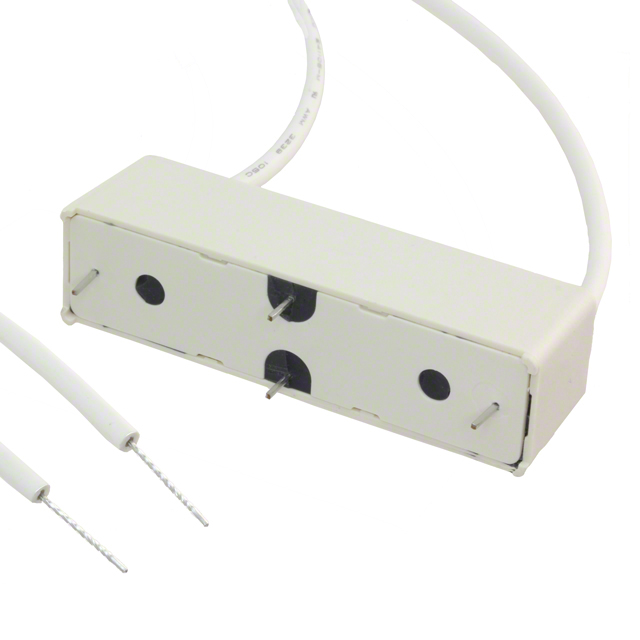

DAT71275FU

Active

Sensata Technologies

RELAY REED SPST-NO 7.5KV 12V

Search across all available documentation for this part.

Active

Sensata Technologies

RELAY REED SPST-NO 7.5KV 12V

Technical Specifications

Parameters and characteristics for this part

RELAY REED SPST-NO 7.5KV 12V

Part	Operate Time	Contact Material	Contact Rating (Current)	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Form	Must Operate Voltage	Coil Voltage	Switching Voltage	Coil Type	Must Release Voltage	Coil Resistance	Release Time	Termination Style
Sensata Technologies DAT71275FU	3 ms	Tungsten (W)	2 A	80 mA	-20 C	70 °C	Through Hole	SPST-NO (1 Form A)	9 VDC	12 VDC	5000 VAC, 5000 VDC	Non Latching	1.25 VDC	150 Ohms	2 ms	PC Pin, Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 57.54

General part information

RELAY REED SPST-NO 7.5KV 12V

Technical documentation and resources

No documents available
