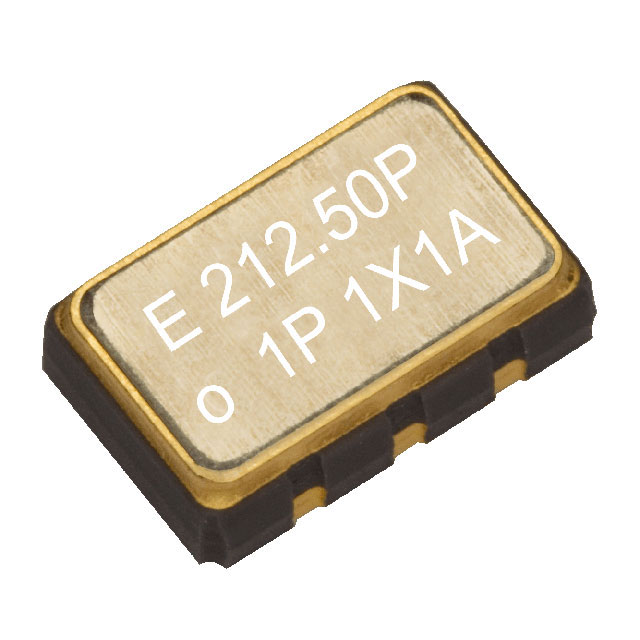

XTAL OSC SO 322.265625MHZ LVPECL

Search across all available documentation for this part.

Active

EPSON

XTAL OSC SO 322.265625MHZ LVPECL

Technical Specifications

Parameters and characteristics for this part

Specification	EG-2121CB 322.265625M-PGSNB

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	2 mA
Current - Supply (Max) [Max]	60 mA
Frequency	322.265625 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max) [Max]	0.061 in
Height - Seated (Max) [Max]	1.55 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output	LVPECL
Package / Case	6-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	SO (SAW)
Voltage - Supply	2.5 V, 3.3 V

XTAL OSC SO 322.265625MHZ LVPECL

Part	Current - Supply (Disable) (Max) [Max]	Current - Supply (Max) [Max]	Voltage - Supply	Package / Case	Base Resonator	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Output	Operating Temperature [Min]	Operating Temperature [Max]	Frequency Stability	Function	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type
EPSON EG-2121CB 322.265625M-PGSNB	2 mA	60 mA	2.5 V, 3.3 V	6-SMD, No Lead	Crystal	322.265625 MHz	0.061 in	1.55 mm	LVPECL	-20 C	70 °C	50 ppm	Enable/Disable	SO (SAW)	0.197 in	0.126 "	3.2 mm	5 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.52

General part information

322.265625 MHz SO (SAW) LVPECL Oscillator 2.5V, 3.3V Enable/Disable 6-SMD, No Lead
