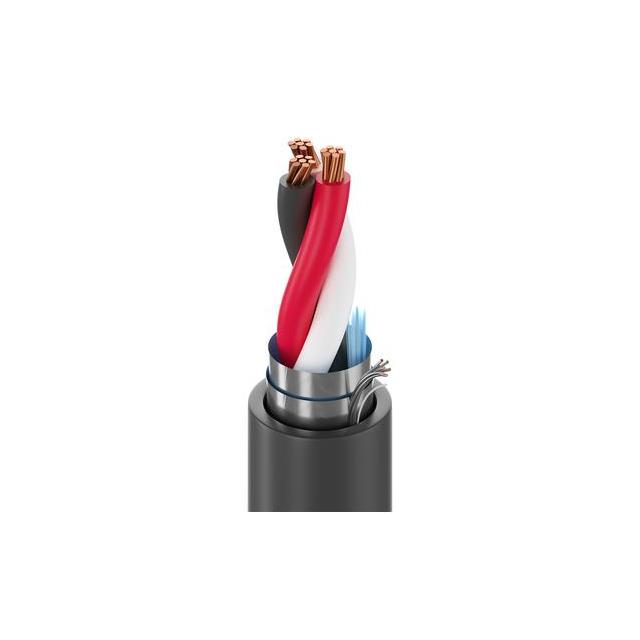

1035A 01010000

Active

Belden Inc.

CABLE 2COND 16AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	1035A 01010000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	24
Jacket (Insulation) Diameter [diameter]	0.256 in
Jacket (Insulation) Diameter [diameter]	6.5 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Black
Length	3048 m
Length [x]	10000 ft
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Voltage	300 V
Wire Gauge	16 AWG

CABLE 2COND 16AWG BLACK

Part	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length [x]	Jacket Color	Number of Conductors	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation
Belden Inc. 1035A 01010000	Copper, Bare	-30 ░C	105 ░C	3048 m	10000 ft	Black	2	Multi-Conductor	7	24	16 AWG	300 V	0.256 in	6.5 mm	Poly-Vinyl Chloride (PVC)	0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 0.90

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 16 AWG 10000' (3048.0m)
