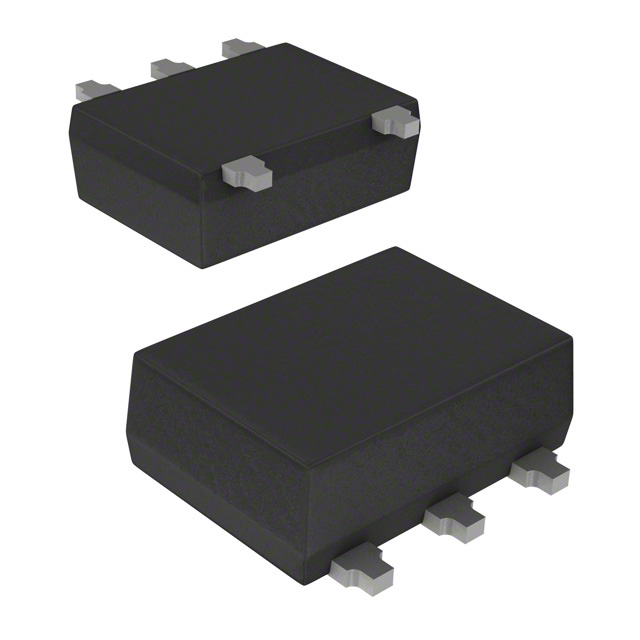

ESDALC14V2-2BP5
ActiveSTMicroelectronics
TVS DIODE 12VWM SOT665
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESDALC14V2-2BP5
ActiveSTMicroelectronics
TVS DIODE 12VWM SOT665
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESDALC14V2-2BP5 |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels | 2 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | SOT-665 |
| Power - Peak Pulse | 50 W |
| Power Line Protection | False |
| Supplier Device Package | SOT-665 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 14.2 V |
| Voltage - Reverse Standoff (Typ) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ESDALC14 Series
TVS DIODE 12VWM SOT665
| Part | Package / Case | Supplier Device Package | Voltage - Breakdown (Min) [Min] | Mounting Type | Voltage - Reverse Standoff (Typ) | Operating Temperature [Max] | Operating Temperature [Min] | Power - Peak Pulse | Power Line Protection | Type | Applications | Bidirectional Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics ESDALC14V2-2BP5 | SOT-665 | SOT-665 | 14.2 V | Surface Mount | 12 V | 150 °C | -40 °C | 50 W | Zener | General Purpose | 2 |
Description
General part information
ESDALC14 Series
Clamp Ipp Tvs Diode Surface Mount SOT-665
