1087111
ActivePhoenix Contact
FIB OPT CBL M17-LC DUPLX MULT 1M
1087111
ActivePhoenix Contact
FIB OPT CBL M17-LC DUPLX MULT 1M
Description
General part information
1087111

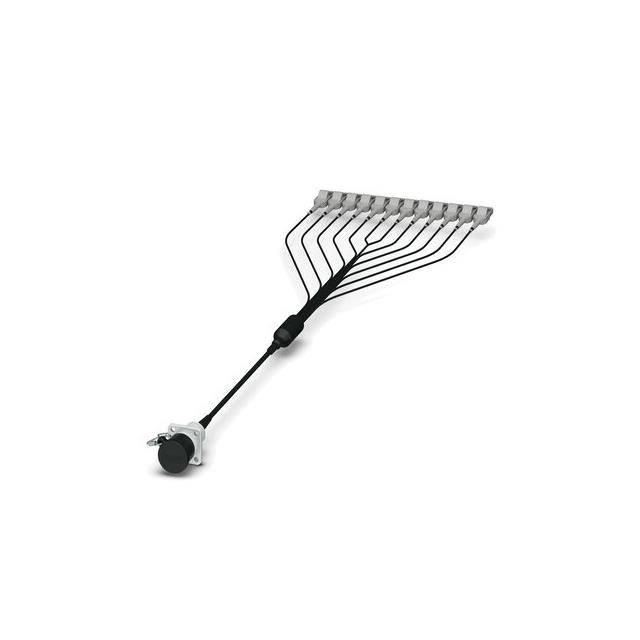

Cable Fiber Optic M17 To LC Duplex (12) 62.5/125 3.3' (1.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1087111 |
|---|---|
| 1st Connector | M17 |
| 2nd Connector | LC Duplex |
| 2nd Connector Count | 12 |
| Bend Radius | 30 mm |
| Color - Cable | Black |
| Color - Connectors | Silver |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 3.3 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | LSZH |
| Type | Multimode, OM1, Duplex |
