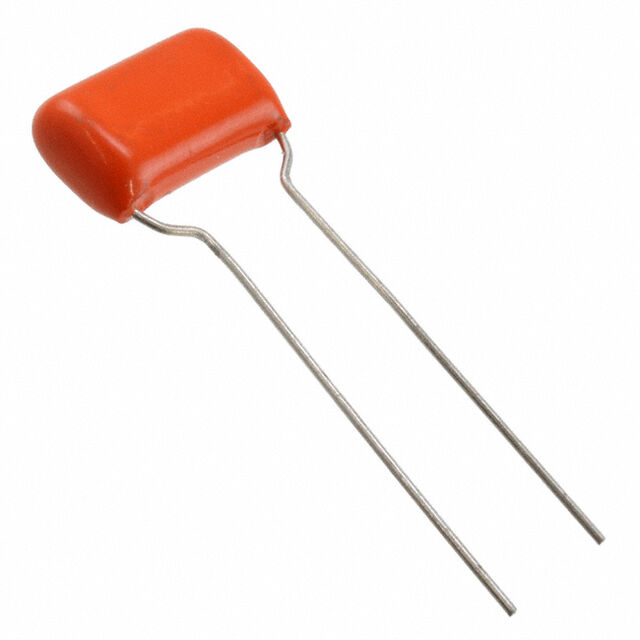

225P22491XD3
ActiveCornell Dubilier Knowles
CAP FILM 0.22UF 10% 100VDC RAD
225P22491XD3
ActiveCornell Dubilier Knowles
CAP FILM 0.22UF 10% 100VDC RAD
Description
General part information
225P22491XD3
0.22 µF Film Capacitor 70V 100V Polyester Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 225P22491XD3 |
|---|---|
| Applications | DC Filtering, DC Link, Audio |
| Capacitance | 0.22 µF |
| Dielectric Material | Polyester |
| Height - Seated (Max) | 0.701 in |
| Lead Spacing | 0.374 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.799 in |
| Size / Dimension Width | 0.461 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 70 V |
| Voltage Rating - DC | 100 V |
