770974-2

Obsolete

TE Connectivity AMP Connectors

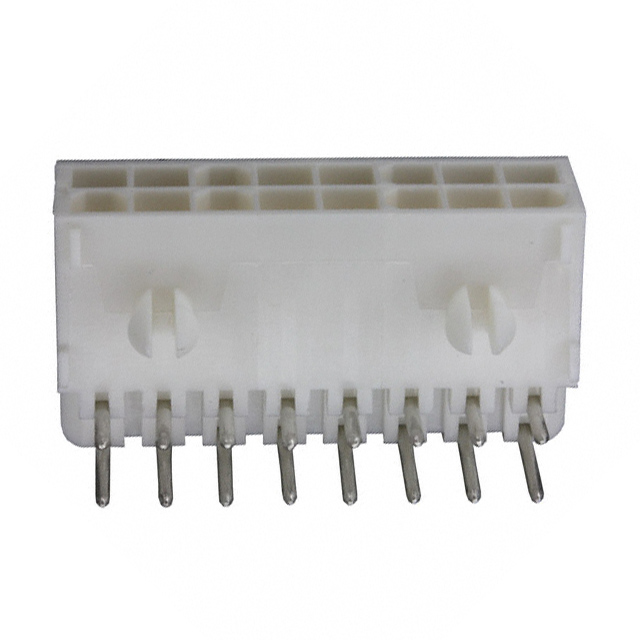

CONN HEADER R/A 16POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

770974-2

Obsolete

TE Connectivity AMP Connectors

CONN HEADER R/A 16POS 4.14MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770974-2	770974 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	9.8 mm	9.8 mm
Insulation Height	0.386 in	0.386 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

770974 Series

CONN HEADER R/A 16POS 4.14MM

Part	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Type	Voltage Rating	Current Rating (Amps)	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions Loaded	Number of Rows	Insulation Color	Mounting Type	Contact Shape	Contact Material	Shrouding	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Applications	Style	Material Flammability Rating	Termination	Row Spacing - Mating	Row Spacing - Mating	Insulation Material
TE Connectivity AMP Connectors 770974-2	Gold	9.8 mm	0.386 in	0.145 in	3.68 mm	Male Pin	600 VAC	Varies by Wire Gauge	Locking Ramp	-20 C	105 ░C	150 Áin	3.81 Ám	30 Áin	0.76 Ám	Tin-Lead	All	2	White	Through Hole, Right Angle	Circular	Brass	Shrouded - 4 Wall	16	Header	4.14 mm	0.163 in	General Purpose	Board to Cable/Wire	UL94 V-0	Solder	4.14 mm	0.163 in	Nylon, Polyamide (PA)
TE Connectivity AMP Connectors 770974-1	Tin-Lead	9.8 mm	0.386 in	0.145 in	3.68 mm	Male Pin	600 VAC	Varies by Wire Gauge	Locking Ramp	-20 C	85 °C	150 Áin	3.81 Ám	150 Áin	3.81 Ám	Tin-Lead	All	2	White	Through Hole, Right Angle	Circular	Brass	Shrouded - 4 Wall	16	Header	4.14 mm	0.163 in	General Purpose	Board to Cable/Wire	UL94 V-0	Solder	4.14 mm	0.163 in	Nylon, Polyamide (PA)
TE Connectivity AMP Connectors 1-770974-1	Gold	9.8 mm	0.386 in	0.145 in	3.68 mm	Male Pin	600 VAC	Varies by Wire Gauge	Locking Ramp	-20 C	105 ░C	150 Áin	3.81 Ám	30 Áin	0.76 Ám	Tin	All	2	White	Through Hole, Right Angle	Circular	Brass	Shrouded - 4 Wall	16	Header	4.14 mm	0.163 in	General Purpose	Board to Cable/Wire	UL94 V-0	Solder	4.14 mm	0.163 in	Nylon, Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

770974 Series

Connector Header Through Hole, Right Angle 16 position 0.163" (4.14mm)
