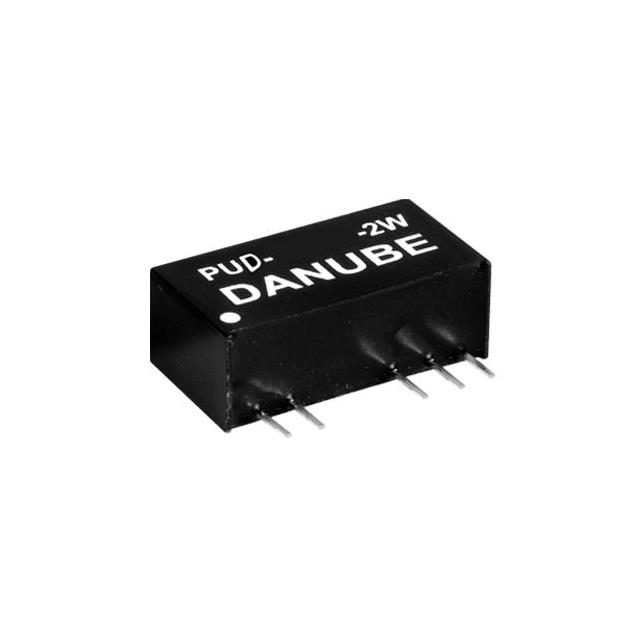

PUD-1212-2W
ActiveDiwell Electronics
DC DC CONVERTER +/-12V 2W
PUD-1212-2W
ActiveDiwell Electronics
DC DC CONVERTER +/-12V 2W
Description
General part information
PUD-1212-2W
Isolated Module DC DC Converter 2 Output 12V -12V 84mA, 84mA 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PUD-1212-2W |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | FCC, CE |
| Current - Output (Max) Options | 84mA |
| Efficiency | 83 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Leads |
| Package Name | 6-SIP Module |
| Power (Watts) | 2 w |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 0.77 in |
| Size / Dimension Width | 0.28 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
