FMAM4063F
ActiveFairview Microwave
POWER AMP 8000MHZ-12.4GHZ P1DB S
FMAM4063F
ActiveFairview Microwave
POWER AMP 8000MHZ-12.4GHZ P1DB S
Description
General part information
FMAM4063F

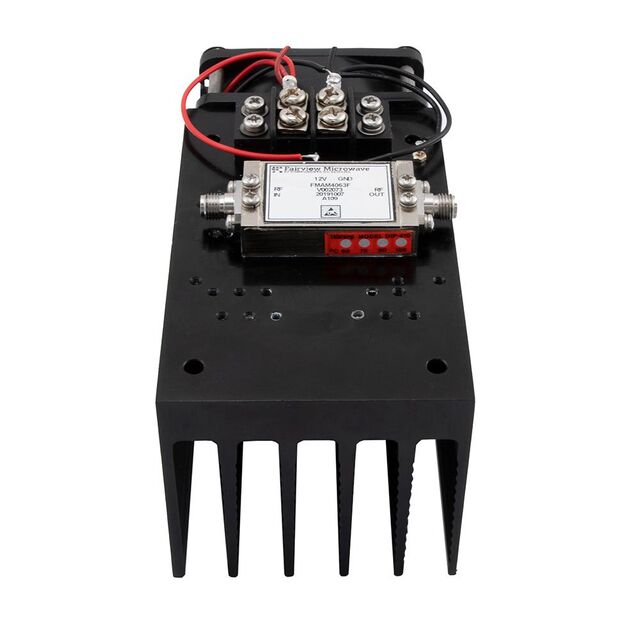

RF Amplifier IC Radar 8GHz ~ 12.4GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM4063F |
|---|---|
| Current - Supply | 800 mA |
| Frequency (Max) | 12.4 GHz |
| Frequency (Min) | 8 GHz |
| Gain | 30 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 6 dB |
| P1dB | 27 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
