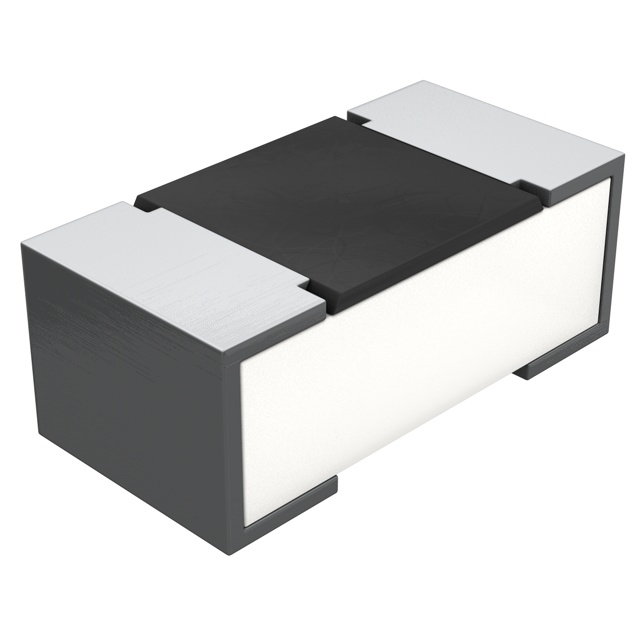

CRCW02014K22FNED

Active

Vishay Dale

RES SMD 4.22K OHM 1% 1/20W 0201

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CRCW02014K22FNED

Active

Vishay Dale

RES SMD 4.22K OHM 1% 1/20W 0201

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRCW02014K22FNED	CRCW0201 Series

Composition	Thick Film	Thick Film
Height - Seated (Max) [Max] [z]	0.26 mm	0.26 mm
Height - Seated (Max) [Max] [z]	0.01 "	0.01 "
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 Metric	0603 Metric
Package / Case	0201	0201
Power (Watts)	0.05 W	0.05 W
Power (Watts)	50 mW	50 mW
Resistance	4.22 kOhms	1 - 750000 Ohms
Size / Dimension [x]	0.6 mm	0.6 mm
Size / Dimension [x]	0.024 "	0.024 "
Size / Dimension [y]	0.3 mm	0.3 mm
Size / Dimension [y]	0.012 "	0.012 "
Supplier Device Package	201	201
Supplier Device Package	-	0201
Temperature Coefficient	200 ppm/°C	100 - 200 ppm/°C
Temperature Coefficient	-	400 ppm/°C
Temperature Coefficient	-	-200 ppm/°C
Tolerance	1 %	1 - 5 %

CRCW0201 Series

CRCW0201 - 200/+400 3R32 1% ET7

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Terminations	Resistance	Package / Case	Package / Case	Supplier Device Package	Composition	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Tolerance	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Temperature Coefficient
Vishay Dale CRCW02013R32FXED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	3.32 Ohms	0603 Metric	0201	201	Thick Film	400 ppm/°C	-200 ppm/°C	1 %	0.05 W	50 mW	0.26 mm	0.01 "
Vishay Dale CRCW0201169KFNED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	169 kOhms	0603 Metric	0201		Thick Film			1 %	0.05 W	50 mW	0.26 mm	0.01 "	0201	200 ppm/°C
Vishay Dale CRCW0201220RJNED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	220 Ohms	0603 Metric	0201	201	Thick Film			5 %	0.05 W	50 mW	0.26 mm	0.01 "		200 ppm/°C
Vishay Dale CRCW020116R5FNED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	16.5 Ohms	0603 Metric	0201	201	Thick Film			1 %	0.05 W	50 mW	0.26 mm	0.01 "		200 ppm/°C
Vishay Dale CRCW02011K13FKED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	1.13 kOhms	0603 Metric	0201	201	Thick Film			1 %	0.05 W	50 mW	0.26 mm	0.01 "		100 ppm/°C
Vishay Dale CRCW0201237KFKED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	237 kOhms	0603 Metric	0201	201	Thick Film			1 %	0.05 W	50 mW	0.26 mm	0.01 "		100 ppm/°C
Vishay Dale CRCW0201121RFKED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	121 Ohms	0603 Metric	0201	201	Thick Film			1 %	0.05 W	50 mW	0.26 mm	0.01 "		100 ppm/°C
Vishay Dale CRCW02012K26FKED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	2.26 kOhms	0603 Metric	0201	201	Thick Film			1 %	0.05 W	50 mW	0.26 mm	0.01 "		100 ppm/°C
Vishay Dale CRCW020111K8FNED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	11.8 kOhms	0603 Metric	0201	201	Thick Film			1 %	0.05 W	50 mW	0.26 mm	0.01 "		200 ppm/°C
Vishay Dale CRCW020178R7FNED	155 °C	-55 °C	0.3 mm	0.6 mm	0.024 "	0.012 "	2	78.7 Ohms	0603 Metric	0201	201	Thick Film			1 %	0.05 W	50 mW	0.26 mm	0.01 "		200 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.04
		50	$ 0.02
		100	$ 0.02
		500	$ 0.01
		1000	$ 0.01
		5000	$ 0.01
	Digi-Reel®	1	$ 0.10
		10	$ 0.04
		50	$ 0.02
		100	$ 0.02
		500	$ 0.01
		1000	$ 0.01
		5000	$ 0.01
	Tape & Reel (TR)	10000	$ 0.01
		20000	$ 0.01
		30000	$ 0.01
		50000	$ 0.01
		100000	$ 0.01

Description

General part information

CRCW0201 Series

4.22 kOhms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Thick Film

Documents

Technical documentation and resources
