TE Connectivity AMP Connectors

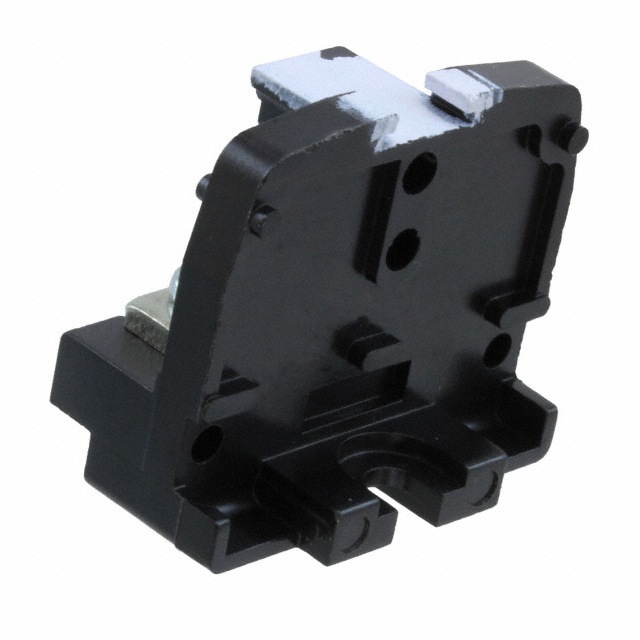

TERM BLK NEMA 2POS

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

TERM BLK NEMA 2POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1437390-8	1437390 Series

Current - UL	35 A	35 - 85 A
Height (Max)	-	32.26 mm
Height (Max)	-	1.27 "
Length	-	1.42 in
Length	-	36.07 mm
Material - Insulation	Phenol Formaldehyde (Phenolic)	Phenol Formaldehyde (Phenolic), Nylon, Polyamide (PA)
Mounting Type	Channel, DIN Rail Mount	Channel, DIN Rail Mount, Direct Mount
Number of Levels	1	1
Number of Positions	2	2
Operating Temperature	150 °C	150 °C
Terminal - Width	-	22.1 mm
Termination Style	Screw	Screw, Screw with Captive Plate, Tubular Clamp, Tubular Screw
Type	NEMA Open Construction	NEMA Open Construction
Wire Gauge or Range - AWG [Max]	22 AWG	18 - 22 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	4 - 10 AWG

TERM BLK NEMA 2POS

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Type	Material - Insulation	Number of Positions	Termination Style	Number of Levels	Operating Temperature	Current - UL	Length [x]	Length [x]	Height (Max) [Max]	Height (Max) [Max]	Terminal - Width [y]
TE Connectivity AMP Connectors 1437390-8	22 AWG	10 AWG	Channel, DIN Rail Mount	NEMA Open Construction	Phenol Formaldehyde (Phenolic)	2	Screw	1	150 °C	35 A
TE Connectivity AMP Connectors 1437390-1	22 AWG	10 AWG	Direct Mount	NEMA Open Construction	Phenol Formaldehyde (Phenolic)	2	Screw	1	150 °C	35 A
TE Connectivity AMP Connectors 4-1437390-2	18 AWG	8 AWG	Direct Mount	NEMA Open Construction	Nylon, Polyamide (PA)	2	Screw with Captive Plate	1	150 °C	50 A
TE Connectivity AMP Connectors 2-1437390-9	18 AWG	6 AWG	Direct Mount	NEMA Open Construction	Phenol Formaldehyde (Phenolic)	2	Tubular Clamp	1	150 °C	65 A
TE Connectivity AMP Connectors 4-1437390-0	18 AWG	4 AWG	Direct Mount	NEMA Open Construction	Nylon, Polyamide (PA)	2	Tubular Screw	1	150 °C	85 A	1.42 in	36.07 mm	32.26 mm	1.27 "	22.1 mm
