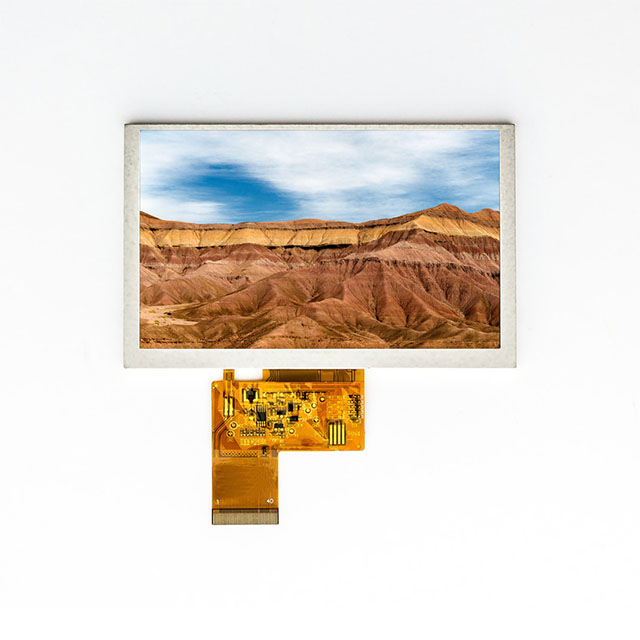

E50RG68048LWAM700-N
ActiveFocus LCDs
5.0" TFT IPS SUNLIGHT READABLE
E50RG68048LWAM700-N
ActiveFocus LCDs
5.0" TFT IPS SUNLIGHT READABLE
Description
General part information
E50RG68048LWAM700-N
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 24-Bit (RGB) 5" (127.00mm) 800 x 480
Technical Specifications
Parameters and characteristics for this part
| Specification | E50RG68048LWAM700-N |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | HX8249, HX8678 |
| Diagonal Screen Size | 5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 800 pixels |
| Dot Pixels (Vertical) | 480 pixels |
| Graphics Color | Red, Green, Blue |
| Interface Data Width | 24 Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 64.8 mm |
| Viewing Area Width | 108 mm |
