MN15BB1G06
ActiveNKK Switches
SWITCH TOGGLE
MN15BB1G06
ActiveNKK Switches
SWITCH TOGGLE
Description
General part information
MN15BB1G06

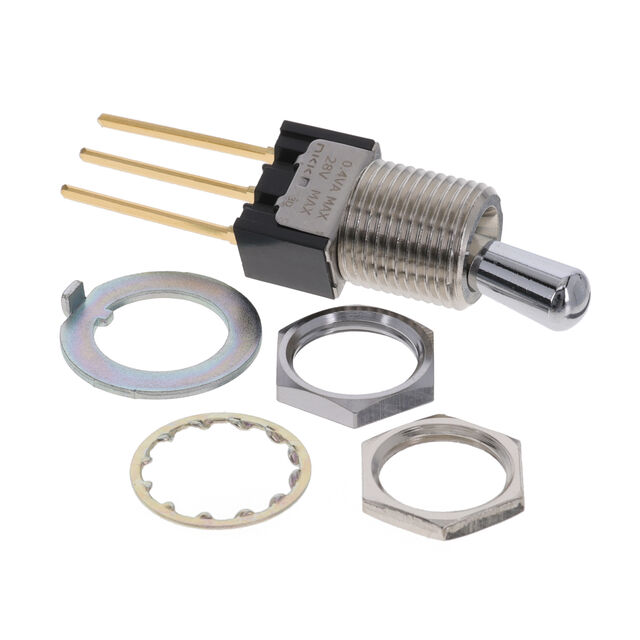

Toggle Switch SPDT Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MN15BB1G06 |
|---|---|
| Actuator Length | 11.5 mm |
| Actuator Material | Chrome Plated, Brass |
| Actuator Type | Standard Round |
| Bushing Thread | M12 x 1 |
| Bushing Thread Diameter | 12 mm |
| Bushing Thread Pitch | 1 mm |
| Circuit | SPDT |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 50000 |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Diameter | 12.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom |
| Termination Style | Wire Wrap |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
