RC1KB1K80
ObsoleteStackpole Electronics Inc

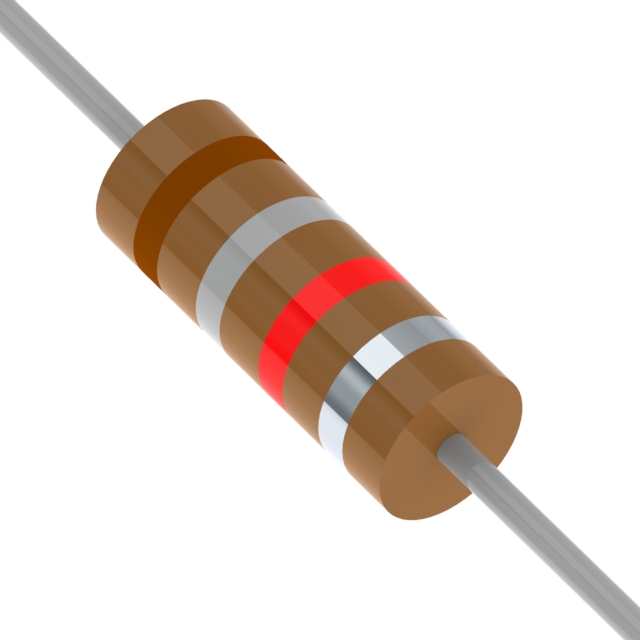

RES 1.8K OHM 10% 1W AXIAL
RC1KB1K80
ObsoleteStackpole Electronics Inc
RES 1.8K OHM 10% 1W AXIAL
Description
General part information
RC1KB1K80
1.8 kOhms ±10% 1W Through Hole Resistor Axial Non-Inductive, Pulse Withstanding Carbon Composition
Technical Specifications
Parameters and characteristics for this part
| Specification | RC1KB1K80 |
|---|---|
| Composition | Carbon Composition |
| Features | Non-Inductive, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 1.8 kOhm |
| Size / Dimension Diameter | 0.224 in |
| Size / Dimension Length | 0.563 in |
| Tolerance | 10 % |
