1621525
ActivePhoenix Contact
CONN PLG HSG FMALE 13POS INLINE
1621525
ActivePhoenix Contact
CONN PLG HSG FMALE 13POS INLINE
Description
General part information
1621525

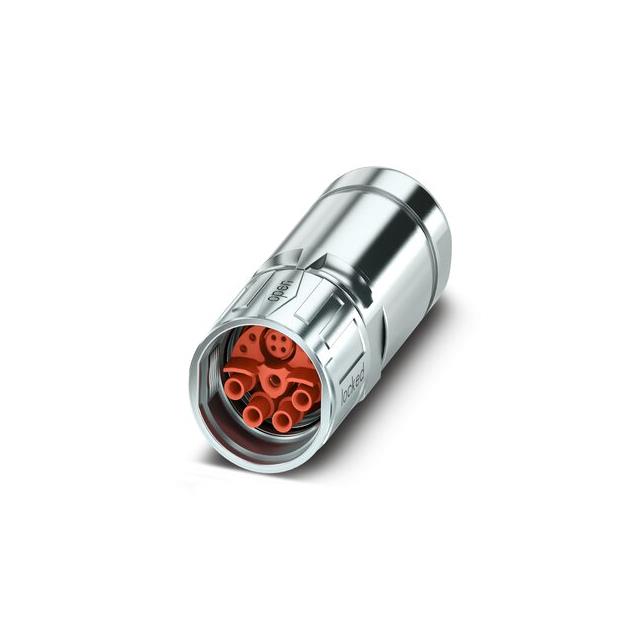

13 (8 + 4 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
Technical Specifications
Parameters and characteristics for this part
| Specification | 1621525 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Size (Power) | 2 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Coupling Nut, Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 13 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | PE, Power |
| Shell Material | Metal |
| Shell Size - Insert | M23-13 |
| Shielding | Shielded |
| Type | For Female Sockets |
