5298
ObsoleteAdafruit Industries LLC

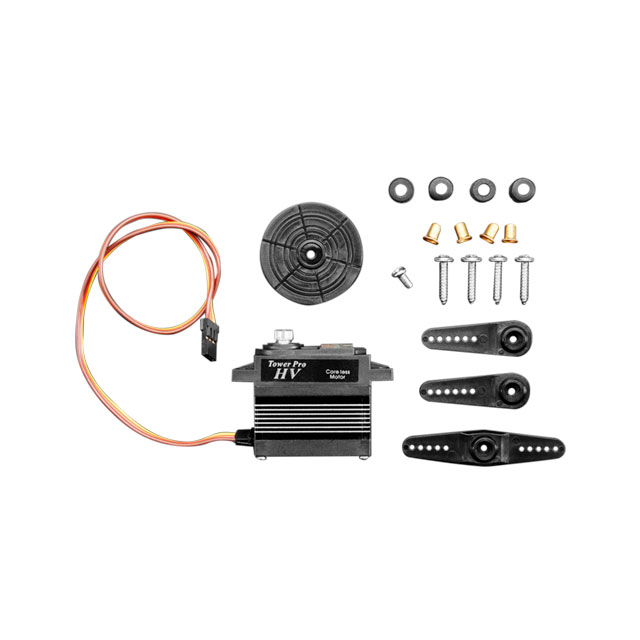

STANDARD SIZE ULTRA HIGH TORQUE
5298
ObsoleteAdafruit Industries LLC
STANDARD SIZE ULTRA HIGH TORQUE
Description
General part information
5298
Positional Rotation DC Motor Servomotor, RC (Hobby) 4.8 ~ 6VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 5298 |
|---|---|
| Function | RC (Hobby), Servomotor |
| Motor Type | Positional Rotation |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 1.524 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.791 in |
| Termination Style | Wire Leads with Connector |
| Torque - Max Momentary (mNm) | 200 mNm |
| Torque - Max Momentary (oz-in) | 28 oz-in |
| Torque - Rated (mNm) | 1.3 mNm |
| Torque - Rated (oz-in) | 0.19 oz-in |
| Type | DC Motor |
| Voltage - Rated (Max) | 6 VDC |
| Voltage - Rated (Min) | 4.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
