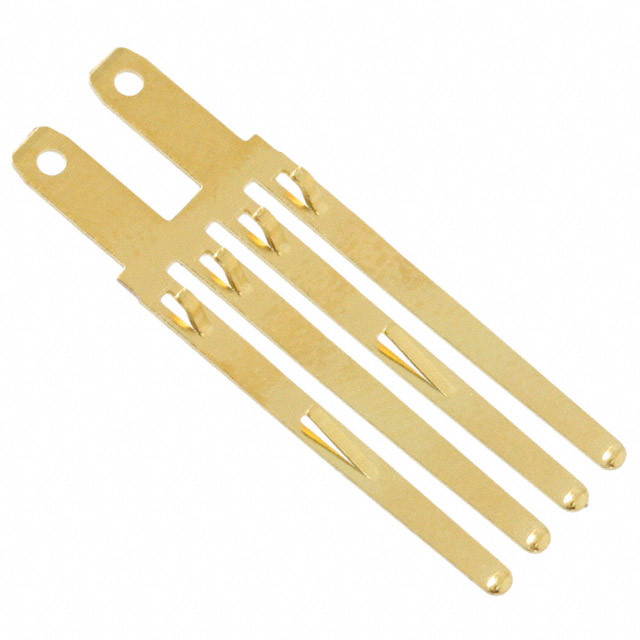

030-7380-002
ActiveITT Cannon, LLC
RECTANGULAR POWER CONTACT, ITT CANNON DL SERIES, GOLD PLATED CONTACTS, COPPER ALLOY, PIN, CRIMP
030-7380-002
ActiveITT Cannon, LLC
RECTANGULAR POWER CONTACT, ITT CANNON DL SERIES, GOLD PLATED CONTACTS, COPPER ALLOY, PIN, CRIMP
Description
General part information
030-7380-002
Contact Gold Signal Non-Gendered 18-30 AWG Quick Connect or Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 030-7380-002 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 20 µin |
| Contact Termination | Quick Connect, Solder |
| Pin or Socket | Non-Gendered |
| Type | Signal |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
