T1551DND-60P000712U1930
ObsoleteHarvatek Corporation
3.1(L)X2.1(W)X0.8(H) MM
T1551DND-60P000712U1930
ObsoleteHarvatek Corporation
3.1(L)X2.1(W)X0.8(H) MM
Description
General part information
T1551DND-60P000712U1930

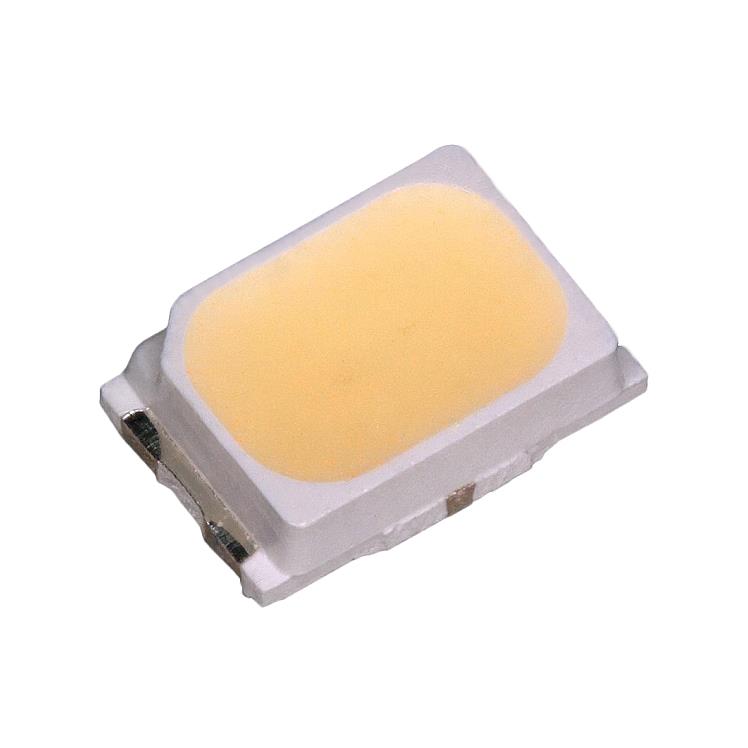

LED Lighting - White, Warm 2.8V 60mA 120° 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | T1551DND-60P000712U1930 |
|---|---|
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max | 60 mA |
| Current - Test | 60 mA |
| Flux | 23 lm |
| Height - Seated (Max) | 0.035 in |
| Lumens/Watt | 137 lm/W |
| Mounting Type | Right Angle, Surface Mount |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.079 in |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
