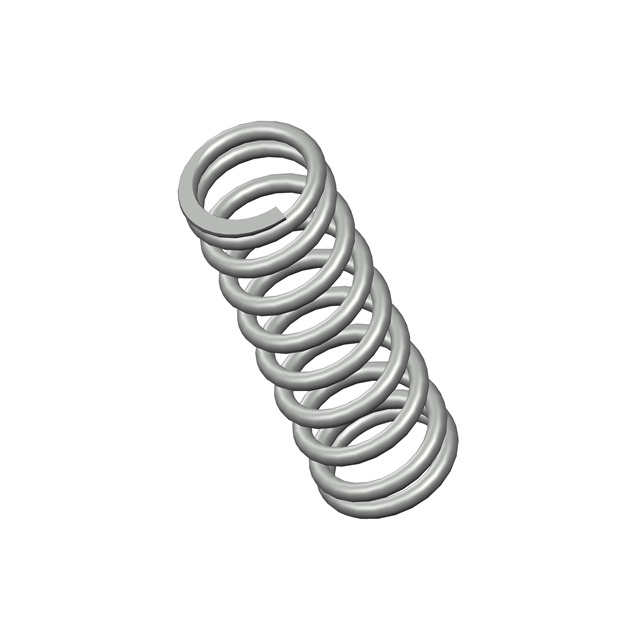

B2-34CS
ActiveCentury Spring Corp
COMP O= .180,L= .55,W= .023
B2-34CS
ActiveCentury Spring Corp
COMP O= .180,L= .55,W= .023
Description
General part information
B2-34CS
COMP O= .180,L= .55,W= .023
Technical Specifications
Parameters and characteristics for this part
| Specification | B2-34CS |
|---|---|
| Diameter - Inside | 0.134 in |
| Diameter - Outside | 0.18 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.55 in |
| Material | Music Wire |
| Rate (lbs/in) | 13 lbs/in |
| Type | Compression |
| Wire Diameter | 0.023 in |
