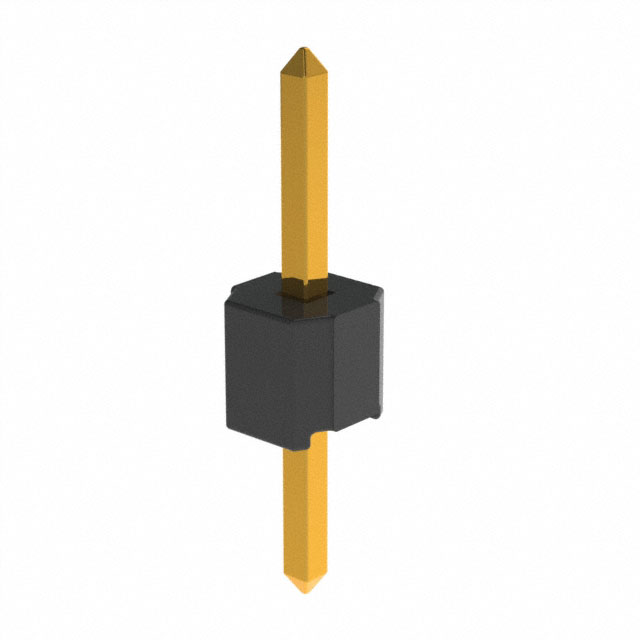

NRPN011PAEN-RC
ActiveSullins Connector Solutions
CONN HEADER VERT 1POS
Deep-Dive with AI
Search across all available documentation for this part.
NRPN011PAEN-RC
ActiveSullins Connector Solutions
CONN HEADER VERT 1POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NRPN011PAEN-RC |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 0.141 in |
| Contact Length - Mating | 3.6 mm |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.079 in |
| Insulation Height | 2 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 1 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 8.4 mm |
| Overall Contact Length | 0.331 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 150 VDC |
NRPN011 Series
| Part | Contact Shape | Insulation Material | Number of Positions Loaded | Contact Finish Thickness - Mating | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating | Contact Length - Mating | Insulation Color | Shrouding | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post | Contact Finish - Mating | Insulation Height | Insulation Height | Voltage Rating | Material Flammability Rating | Contact Material | Connector Type | Style | Termination | Contact Type | Number of Positions | Contact Finish Thickness - Post | Number of Rows | Fastening Type | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | All | Flash | 2 A | Through Hole Right Angle | -40 °C | 105 ░C | 0.141 in | 3.6 mm | Black | Unshrouded | Gold | 0.11 in | 2.79 mm | Gold | 0.079 in | 2 mm | 150 VDC | UL94 V-0 | Brass | Header | Board to Board Cable | Solder | Male Pin | 1 | Flash | 1 | Push-Pull | ||
Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | All | Flash | 2 A | Through Hole | -40 °C | 105 ░C | 0.141 in | 3.6 mm | Black | Unshrouded | Gold | 0.11 in | 2.79 mm | Gold | 0.079 in | 2 mm | 150 VDC | UL94 V-0 | Brass | Header | Board to Board Cable | Solder | Male Pin | 1 | Flash | 1 | Push-Pull | 8.4 mm | 0.331 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.19 | |||
| 5000 | $ 0.16 | |||
| 10000 | $ 0.15 | |||
Description
General part information
NRPN011 Series
Connector Header Through Hole 1 position
