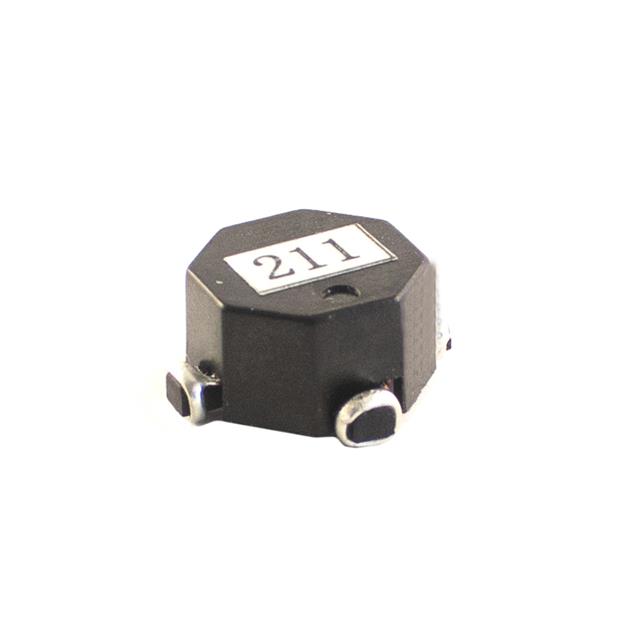

TCM3-211-RC
ActiveAllied Components International
CMC 217UH 2LN SMD
TCM3-211-RC
ActiveAllied Components International
CMC 217UH 2LN SMD
Description
General part information
TCM3-211-RC
217 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount DCR 26mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | TCM3-211-RC |
|---|---|
| DC Resistance (DCR) (Max) | 26 mOhm |
| Height (Max) | 0.283 " |
| Inductance | 217 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -20 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.441 in |
