Description
General part information

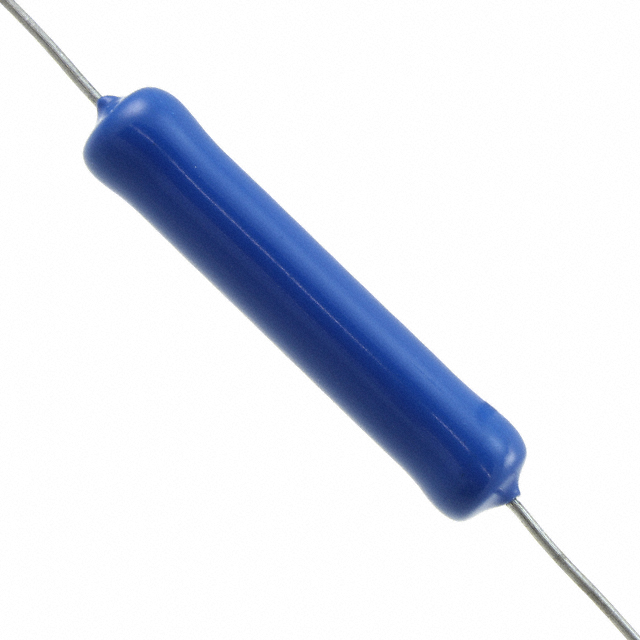

EY470KE
47 Ohms ±10% 2.5W Through Hole Resistor Axial Moisture Resistant Ceramic
Technical Specifications
Parameters and characteristics for this part
| Specification | EY470KE |
|---|---|
| Composition | Ceramic |
| Features | Moisture Resistant |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Power (Watts) | 2.5 W |
| Resistance | 47 Ohms |
| Size / Dimension Diameter | 0.37 in |
| Size / Dimension Length | 1.819 in |
| Temperature Coefficient (Highest) | -600 ppm/°C |
| Temperature Coefficient (Lowest) | -1200 ppm/°C |
| Temperature Coefficient (Max) | -600 ppm/°C |
| Temperature Coefficient (Min) | -1200 ppm/°C |
| Tolerance | 10 % |
