21-14-24

Active

Cinch Connectivity Solutions Trompeter

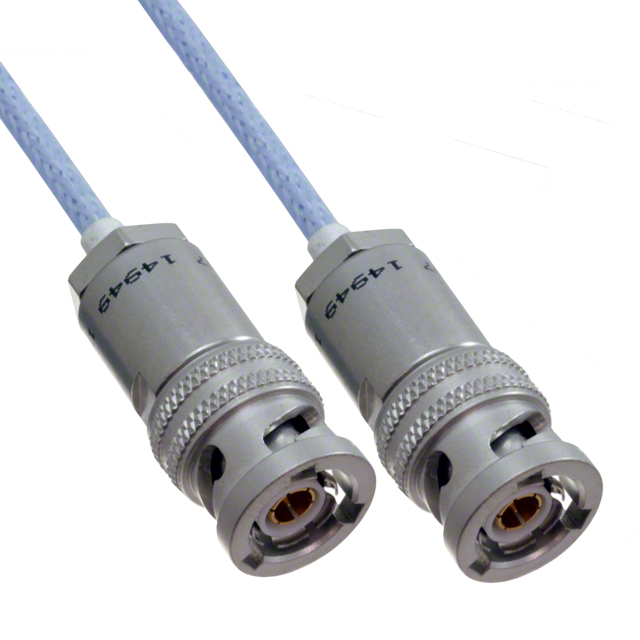

CBL ASSY TRB PLUG TO PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

21-14-24

Active

Cinch Connectivity Solutions Trompeter

CBL ASSY TRB PLUG TO PLUG 24"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 233.81
		10	$ 183.17
		25	$ 167.19
		50	$ 156.43

Description

General part information

21-14 Series

Cable Assembly Coaxial TRB to TRB Twinaxial 24.00" (609.60mm)

Documents

Technical documentation and resources

Datasheet

Specification	21-14-24	21-14 Series

1st Connector	TRB Plug	TRB Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	TRB Plug	TRB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	Twinaxial	Twinaxial
Color	Blue	Blue
Features	Shielded	Shielded
Frequency - Max [Max]	500 GHz	500 GHz
Length	24 "	10 - 196.9 in
Length	609.6 mm	1 - 609.6 m
Length	-	3.3 - 16.4 ft
Length	-	14.8 ft
Length	-	177.2 in
Length	-	4.5 m
Overall Impedance	78 Ohms	78 Ohms
Qualification	MIL-STD-1553B	MIL-STD-1553B
Style	TRB to TRB	TRB to TRB

Part	Cable Type	2nd Connector Mounting Type	Style	1st Connector Mounting Type	1st Contact Gender	Features	Overall Impedance	2nd Contact Gender	Color	Qualification	2nd Connector	Frequency - Max [Max]	Length	Length	Length	1st Connector	Length [x]	Length [x]	Length [x]
Cinch Connectivity Solutions Trompeter 21-14-M1.0	Twinaxial	Free Hanging (In-Line)	TRB to TRB	Free Hanging (In-Line)	Male	Shielded	78 Ohms	Male	Blue	MIL-STD-1553B	TRB Plug	500 GHz	1 m	3.3 ft	39.4 in	TRB Plug
Cinch Connectivity Solutions Trompeter 21-14-M3.5	Twinaxial	Free Hanging (In-Line)	TRB to TRB	Free Hanging (In-Line)	Male	Shielded	78 Ohms	Male	Blue	MIL-STD-1553B	TRB Plug	500 GHz	3.5 m	11.5 ft	137.8 "	TRB Plug
Cinch Connectivity Solutions Trompeter 21-14-M3.0	Twinaxial	Free Hanging (In-Line)	TRB to TRB	Free Hanging (In-Line)	Male	Shielded	78 Ohms	Male	Blue	MIL-STD-1553B	TRB Plug	500 GHz	3 m	9.8 '	118.1 in	TRB Plug
Cinch Connectivity Solutions Trompeter 21-14-M4.5	Twinaxial	Free Hanging (In-Line)	TRB to TRB	Free Hanging (In-Line)	Male	Shielded	78 Ohms	Male	Blue	MIL-STD-1553B	TRB Plug	500 GHz				TRB Plug	14.8 ft	177.2 in	4.5 m
Cinch Connectivity Solutions Trompeter 21-14-M1.5	Twinaxial	Free Hanging (In-Line)	TRB to TRB	Free Hanging (In-Line)	Male	Shielded	78 Ohms	Male	Blue	MIL-STD-1553B	TRB Plug	500 GHz	1.5 m	4.9 ft	59.1 in	TRB Plug
