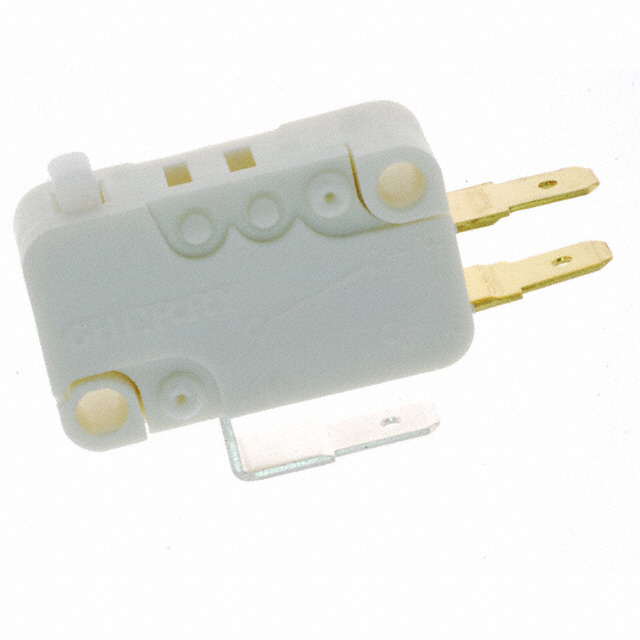

D43C-R1AA
ObsoleteZF Electronics
SWITCH SNAP ACTION SPDT 5A 125V
D43C-R1AA
ObsoleteZF Electronics
SWITCH SNAP ACTION SPDT 5A 125V
Description
General part information
D43C-R1AA
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | D43C-R1AA |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating | 5 A |
| Differential Travel (Linear) | 0.012 in |
| Electrical Life (Cycles) | 6000 Cycles |
| Features | Explosion Proof |
| Mounting Type | Chassis Mount |
| Operating Force | 173 gf |
| Operating Position (Length) | 0.56 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overtravel (Linear) | 0.051 in |
| Pretravel (Length) | 0.047 in |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
