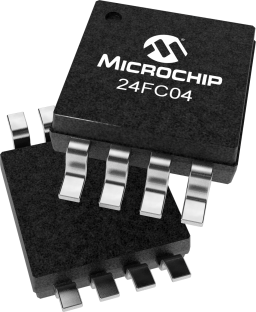

24FC04T-E/MS

Active

Microchip Technology

EEPROM, 4 KBIT, 2 BLK (256 X 8BIT), I2C, 1 MHZ, MSOP, 8 PINS

Find alt

Alpha

24FC04T-E/MS

Active

Microchip Technology

EEPROM, 4 KBIT, 2 BLK (256 X 8BIT), I2C, 1 MHZ, MSOP, 8 PINS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

24FC04 Series

The Microchip Technology Inc. 24FC04H is a 4Kb I2C™ compatible Serial EEPROM with half array write protection. The device is organized as two blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 µA and 1 mA, respectively. The 24FC04H also has a page write capability for up to 16 bytes of data. The 24FC04H is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 UDFN and MSOP packages, and is also available in the 5-lead SOT-23 package. All packages are Pb-free and RoHS compliant.

Technical Specifications

Parameters and characteristics for this part

Specification	24FC04T-E/MS

Access Time	450 ns
Clock Frequency	1 MHz
Memory Depth (Config 1)	256
Memory Format	EEPROM
Memory Instances (Config 2)	2
Memory Interface (Type)	I2C
Memory Organization	256 x 8 x 2
Memory Size	4 Kbit
Memory Type	Non-Volatile
Memory Width (Config 1)	8 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package Length	0.118 in
Package Name	8-MSOP, 8-TSSOP, 8-MSOP
Package Width	3 mm
Technology	EEPROM
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	1.7 V
Write Cycle Time - Page	5 ms
Write Cycle Time - Word	5 ms

24FC04 Series

4Kb I2C compatible 2-wire Serial EEPROM with Half-Array Write Protection

Part	Clock Frequency	Memory Type	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Memory Size	Memory Width (Config 1)	Memory Organization	Memory Depth (Config 1)	Memory Instances (Config 2)	Access Time	Technology	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Mounting Type	Package Length	Package Name	Package Width	Memory Format	Write Cycle Time - Word	Write Cycle Time - Page	Memory Interface (Type)	Grade	Qualification
Microchip Technology 24FC04HT-I/Q4B	1 MHz	Non-Volatile	85 °C	-40 °C	8-UFDFN Exposed Pad	4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Surface Mount	2 mm	8-UDFN	3 mm	EEPROM	5 ms	5 ms	I2C
Microchip Technology 24FC04H-E/P	1 MHz	Non-Volatile	125 °C	-40 °C		4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Through Hole	0.3 in	8-DIP 8-PDIP	7.62 mm	EEPROM	5 ms	5 ms	I2C
Microchip Technology 24FC04-I/MS	1 MHz	Non-Volatile	85 °C	-40 °C		4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Surface Mount	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	EEPROM	5 ms	5 ms	I2C
Microchip Technology 24FC04-I/P	1 MHz	Non-Volatile	85 °C	-40 °C		4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Through Hole	0.3 in	8-DIP 8-PDIP	7.62 mm	EEPROM	5 ms	5 ms	I2C
Microchip Technology 24FC04HT-E/ST	1 MHz	Non-Volatile	125 °C	-40 °C		4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Surface Mount	0.173 in	8-TSSOP	4.4 mm	EEPROM	5 ms	5 ms	I2C
Microchip Technology 24FC04T-E/OT	1 MHz	Non-Volatile	125 °C	-40 °C		4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Surface Mount		SOT-23-5		EEPROM	5 ms	5 ms	I2C
Microchip Technology 24FC04T-E/OT36KVAO	1 MHz	Non-Volatile	125 °C	-40 °C		4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Surface Mount		SOT-23-5		EEPROM	5 ms	5 ms	I2C	Automotive	AEC-Q100
Microchip Technology 24FC04T-E/ST36KVAO	1 MHz	Non-Volatile	125 °C	-40 °C		4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Surface Mount	0.173 in	8-TSSOP	4.4 mm	EEPROM	5 ms	5 ms	I2C	Automotive	AEC-Q100
Microchip Technology 24FC04H-E/ST	1 MHz	Non-Volatile	125 °C	-40 °C		4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Surface Mount	0.173 in	8-TSSOP	4.4 mm	EEPROM	5 ms	5 ms	I2C
Microchip Technology 24FC04T-E/Q4B	1 MHz	Non-Volatile	125 °C	-40 °C	8-UFDFN Exposed Pad	4 Kbit	8 bit	256 x 8 x 2	256	2	450 ns	EEPROM	1.7 V	5.5 V	Surface Mount	2 mm	8-UDFN	3 mm	EEPROM	5 ms	5 ms	I2C
