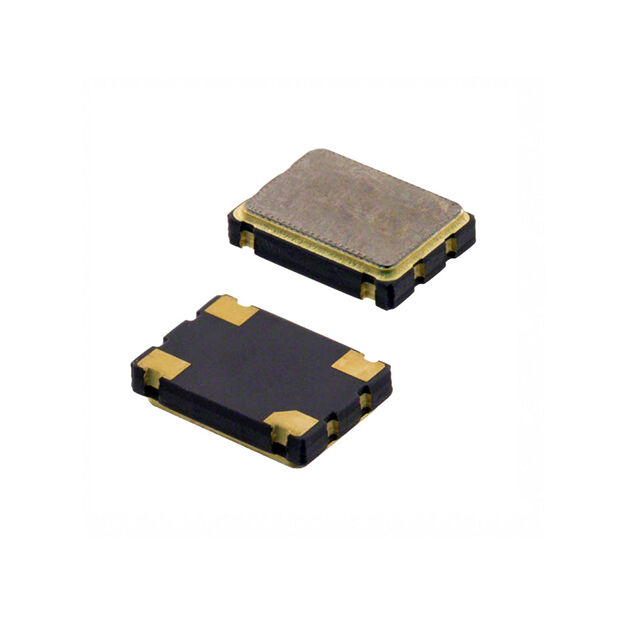

ASVDV-8.000MHZ-XC-T
ActiveAbracon LLC
OSC XO 8MHZ 1.6V ~ 3.6V SMD
ASVDV-8.000MHZ-XC-T
ActiveAbracon LLC
OSC XO 8MHZ 1.6V ~ 3.6V SMD
Description
General part information
ASVDV-8.000MHZ-XC-T
8 MHz XO (Standard) CMOS, HCMOS, LVCMOS Oscillator 1.8V, 2.5V, 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASVDV-8.000MHZ-XC-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 2 mA |
| Frequency | 8 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS, HCMOS, LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V, 1.8 V, 3.3 V |
| Voltage - Supply | 2.5V, 3.3V, 1.8V |
