Description
General part information

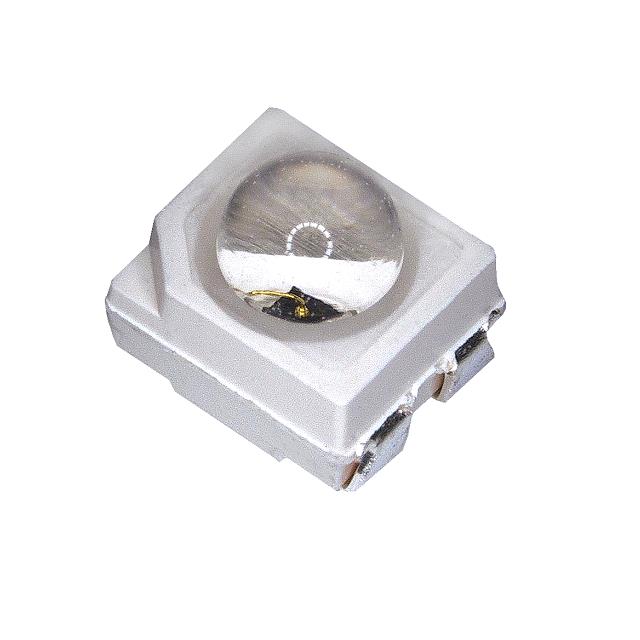

BS352AC-ZIR
Infrared (IR) Emitter 940nm 1.56V 100mA 1.29mW/sr @ 100mA 60°
Technical Specifications
Parameters and characteristics for this part
| Specification | BS352AC-ZIR |
|---|---|
| Current - DC Forward (If) (Max) | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Radiant Intensity (Ie) Min | 1.29 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 1.56 V |
| Wavelength | 940 nm |
