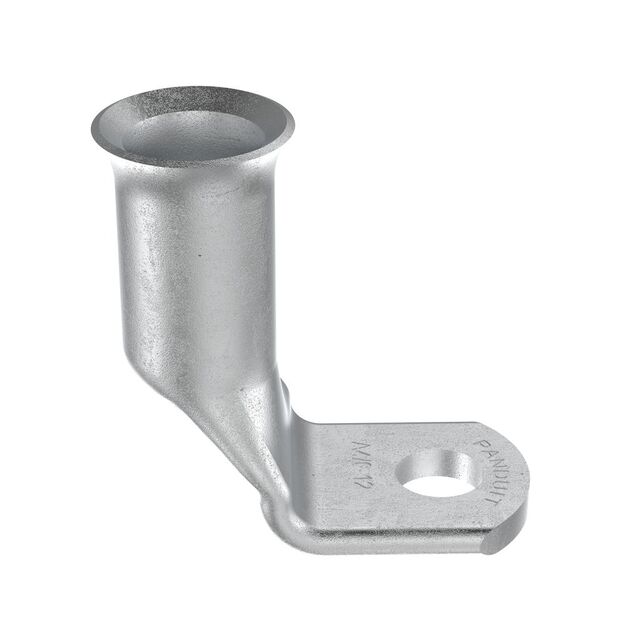

A4/0-12RF-C
ActivePanduit Corp
BATTERY CABLE LUG, 6 AWG, #10 ST
A4/0-12RF-C
ActivePanduit Corp
BATTERY CABLE LUG, 6 AWG, #10 ST
Description
General part information
A4/0-12RF-C
Ring Terminal Connector 1/2 Stud Circular 4/0 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | A4/0-12RF-C |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.56 in |
| Length - Overall | 1.65 in |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.12 in |
| Width - Outer Edges | 1.02 in |
| Wire Gauge | 4/0 AWG |
